PERFORERADE AKUSTISKA TRÄPANELER

rWood - Perf

Precisionsperforeringar, maximal absorption

High-performance drilled acoustic panels combining natural wood beauty with outstanding sound absorption. A Fire Retardant Medium Density Fiberboard core and over-veneered edges deliver the highest levels of fire safety and acoustic control for demanding public spaces.

🔘Runda perforeringar
🔥B2-s1, d0 Fire Rated
🔇Upp till klass B
Begär offertSe specifikationer

rWood - Perf acoustic panel
Välj träfanér
Select a veneer

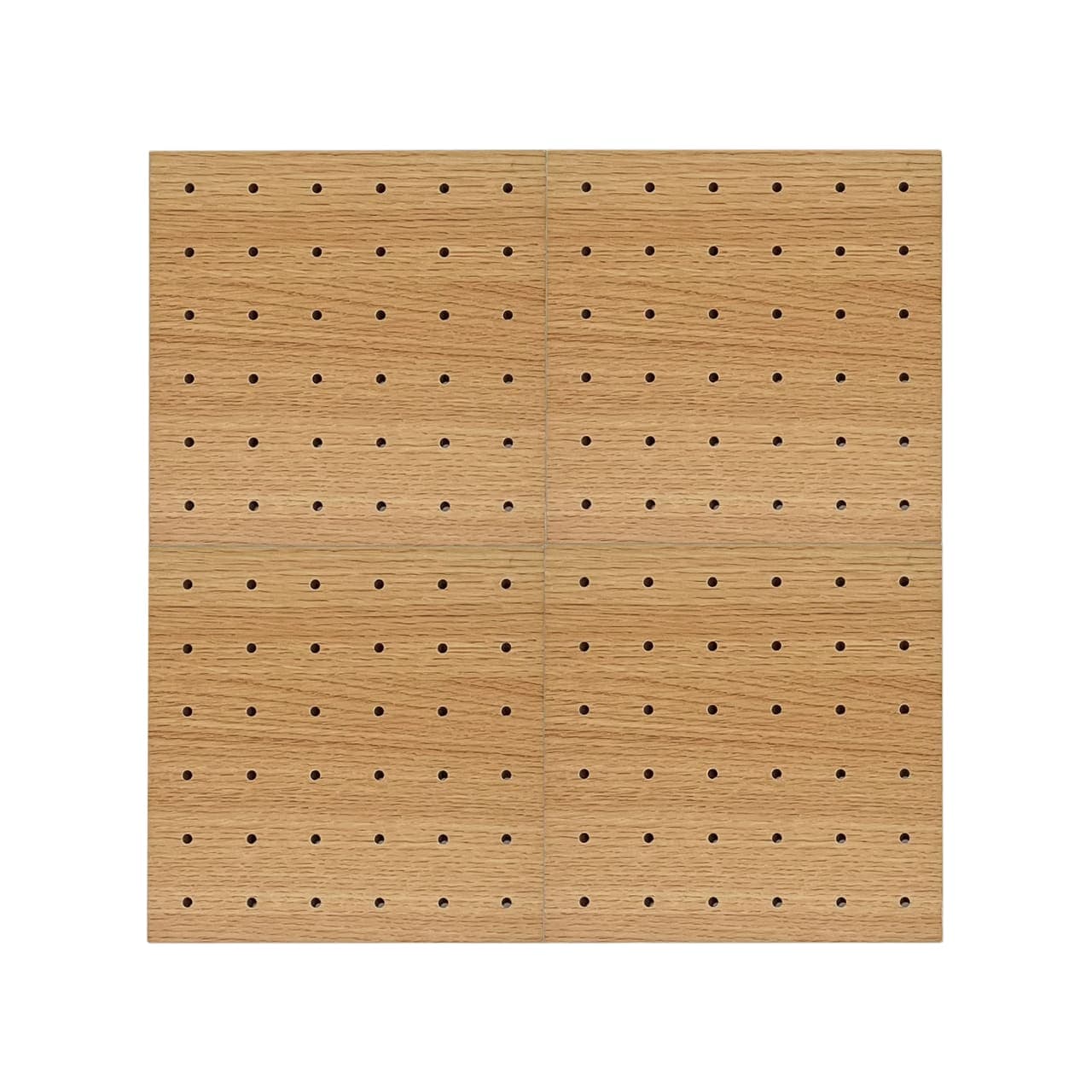

rWood - Perf panel close-up showing round perforations
BEVISAD PRESTANDA

Precisionsperforeringar, maximal absorption

rWood - Perf panels are one of the most effective and widely used solutions for acoustic walls and ceilings. The precisely drilled round perforations create a large open area that guarantees high levels of sound absorption, while premium wood veneer ensures a natural, warm appearance.

Combined with a Fire Retardant Medium Density Fiberboard core and over-veneered edges for seamless joints, these panels are engineered for the highest demands in large public spaces—from atriums and concert halls to offices and schools.

  • ✓Fire Retardant Medium Density Fiberboard core (B2-s1, d0)
  • ✓Over-veneered edges for seamless joints
  • ✓Light or dark core for pattern discretion
  • ✓Custom formats up to 3050 × 1220 mm
PERFORATIONSMÖNSTER

Välj ditt mönster

Four drilled perforation patterns with calibrated acoustic properties. From maximum open area for demanding acoustic spaces to more discreet patterns that prioritize visual refinement.

PD8

⌀8 mm · 24% open

Maximum absorption, large open area

αw 0.85 · Class B

PH10

⌀10 mm · 18% open

High absorption, bold perforations

αw 0.75 · Class C

PH8

⌀8 mm · 12% open

Balanced look and performance

αw 0.55 · Class D

PH5

⌀5 mm · 5% open

Discreet pattern, subtle surface

αw 0.35 · Class D

Kärnfärg

Match the core to your veneer to make perforations blend in, or choose a contrasting core for a decorative effect.

SURFACES

Premium träytor

Every rWood - Perf panel is produced with over-veneered edges—a traditional manufacturing technique where solid wood edging is integrated around the panel before veneering. This gives each panel the appearance of being entirely of wood, with seamless joints across large surfaces.

Nature-fanér

Lively variations and characteristic expression associated with each wood species. associated with each wood species. Authentic grain patterns and natural beauty.

Gemini-fanér

Even colour tone and structure for a more harmonious, uniform appearance., uniform appearance across large surfaces.

Ytfinish

Perforated wood panel veneer surface detail
PERFORMANCE

Designad för ljud

Precision-drilled perforations allow sound waves to enter the panel and pass through to the cavity behind. Combined with mineral wool insulation, rWood - Perf delivers outstanding broadband absorption across the full frequency spectrum—from low bass to high treble.

Panelsektion
Träfanér + perforeringarOver-veneered, precision-drilled surface
Fire Retardant Medium Density Fiberboard CoreFire Retardant, 0.45 kg/m³ density
Akustisk fleeceFörhindrar fibervandring
Mineralullshålighet30–50 mm for broadband absorption
Ljudvågor absorberas
αw 0.85Absorption
★Upp till klass B
B-s1, d0
Brandklass
NRC 0.90
Bullerdämpning
Independently tested & certified to ISO 11654

Bredbandsabsorption

Effective across the full frequency spectrum, from low to high

Högsta brandsäkerhet

B-s1, d0—the highest achievable class for wooden panels

Justerbar prestanda

Four perforation patterns for tailored acoustic solutions

DOLD MONTERING

Sömlös installation

rWood - Perf panels are installed with a concealed clip system designed for precision, speed, and a flawless end result. The system ensures zero-spaced joints and perfectly aligned perforation patterns across multiple panels.

1

Montera underram

Install metal rails to wall or ceiling structure

2

Placera isolering

Add mineral wool in the cavity for optimal absorption

3

Clipspaneler

Concealed clip system for tool-free, zero-gap mounting

4

Perfekt riktning

In-line perforation patterns with seamless over-veneered joints

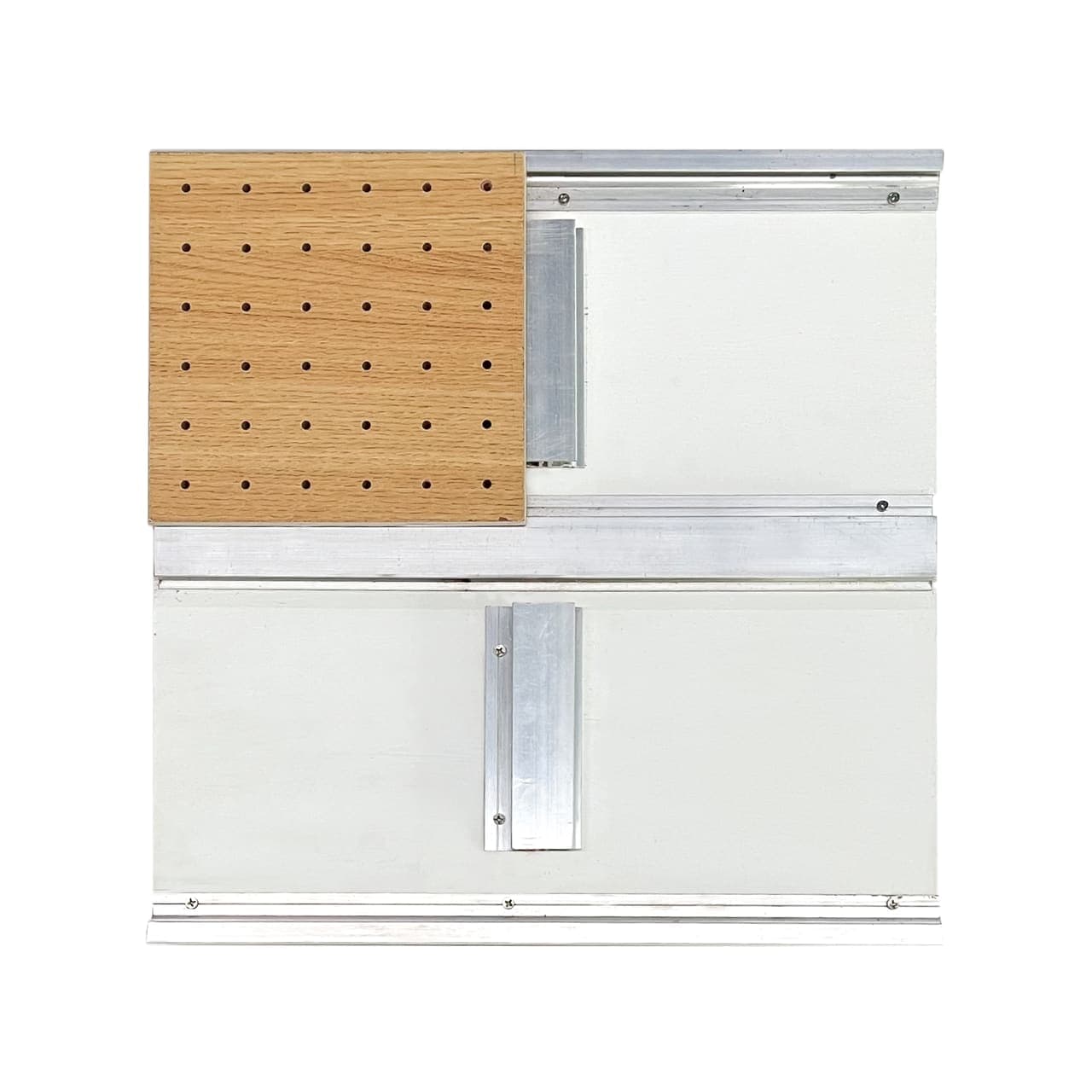

rWood - Perf panel concealed mounting system
Sustainable wood sourcing and production
HÅLLBARHET

Byggd för att hålla, byggd ansvarsfullt

rWood - Perf combines durable, natural materials with responsible sourcing. The fibre gypsum core is inherently low-emitting—no chemical impregnation is needed for fire performance—and our veneers come from sustainably managed forests.

🌲

FSC® certifierad

Wood from responsibly managed forests

♻️

17% återvunnet innehåll

Post-consumer recycled material in core

🏭

Europeisk produktion

Renewable energy sources, short supply chains

📋

Ultralåga utsläpp

No added formaldehyde, EPD available

TECHNICAL

Specifikationer

Dimensions — Walls and Ceilings

Specialmått100–3050 × 100–1220 mm
Tjocklek8 - 19 mm
Vikt~From 0,35 kg/m²
Kärntäthet48,40 kg/m³

Akustisk prestanda

Absorption coefficient (αw)0.90
With 50mm mineral woolUp to 1.00
Absorption classClass A / C
Test standardISO 354 / ISO 11654

Perforeringsalternativ

PD8 (⌀8 mm double)24% open — αw 0.85
PH10 (⌀10 mm)18% open — αw 0.75
PH8 (⌀8 mm)12% open — αw 0.55
PH5 (⌀5 mm)5% open — αw 0.35

Brandsäkerhet

BrandreaktionB-s1, d0
BrandsäkerhetK1-10 / K2-10
CoreBrandhämmande
Test standardEN 13501

Materials

YtaFanér / HPL / folie / färg
CoreMedium Density Fiberboard core (brown / green / black)
KanterÖversvarvad massiv ved
Akustisk filtSvart / vit

Certifieringar

TräkällorFSC® certifierad
VOC emissionsTVOC approved (ISO 16000)
FormaldehydInget tillsatt urea-formaldehyd
MiljöEPD tillgänglig
INSPIRATION

Projekt och Installationer

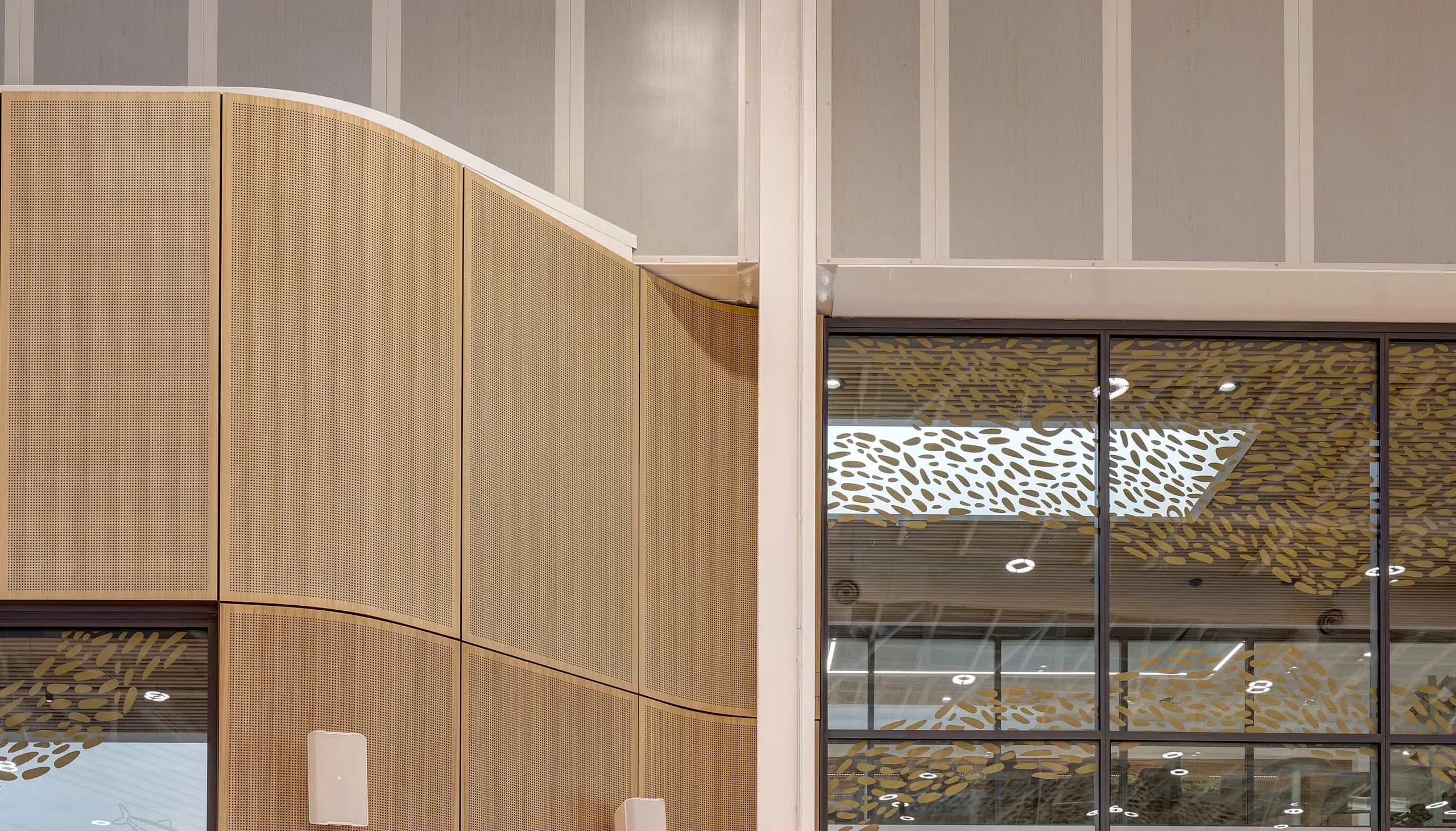

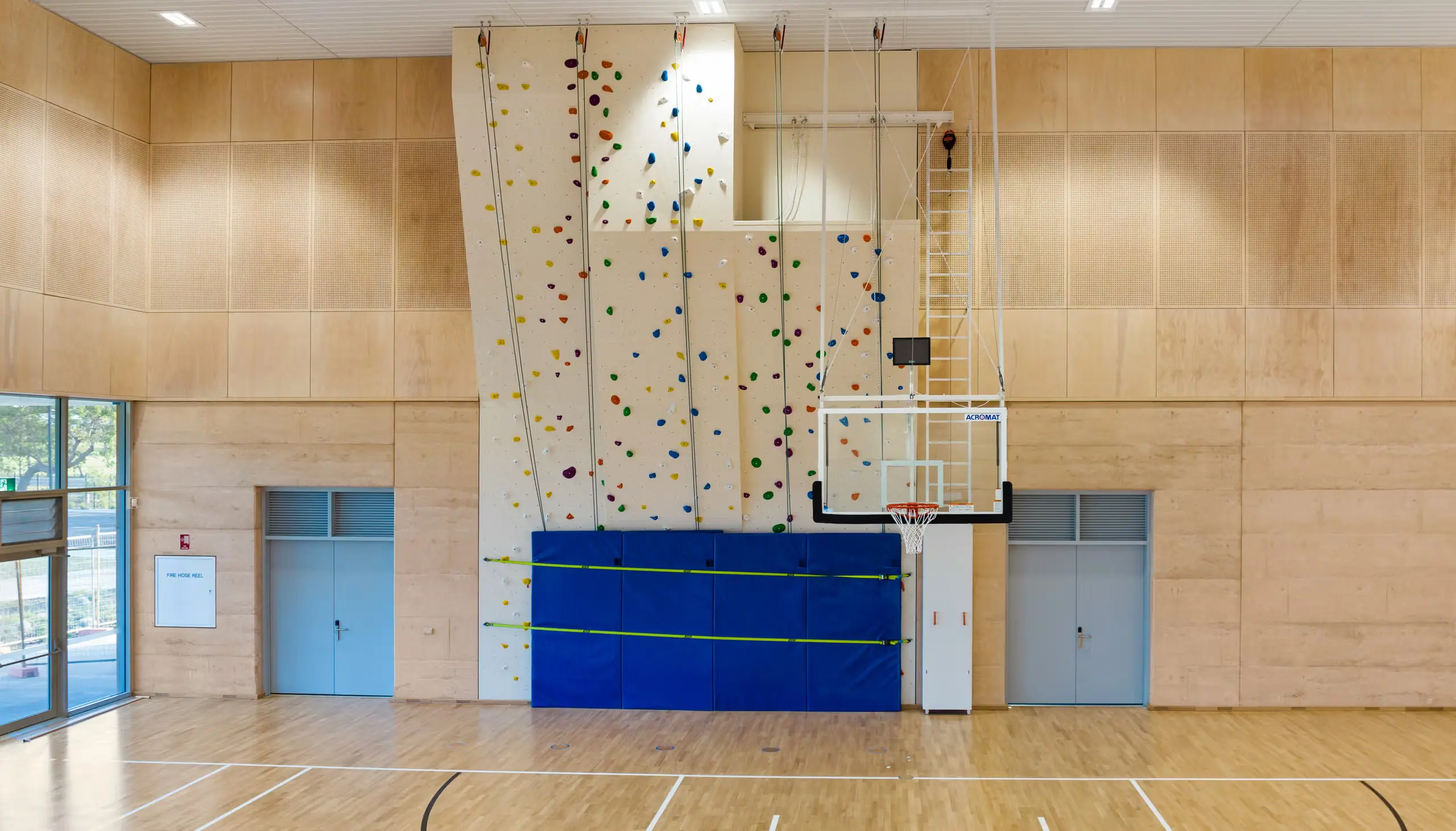

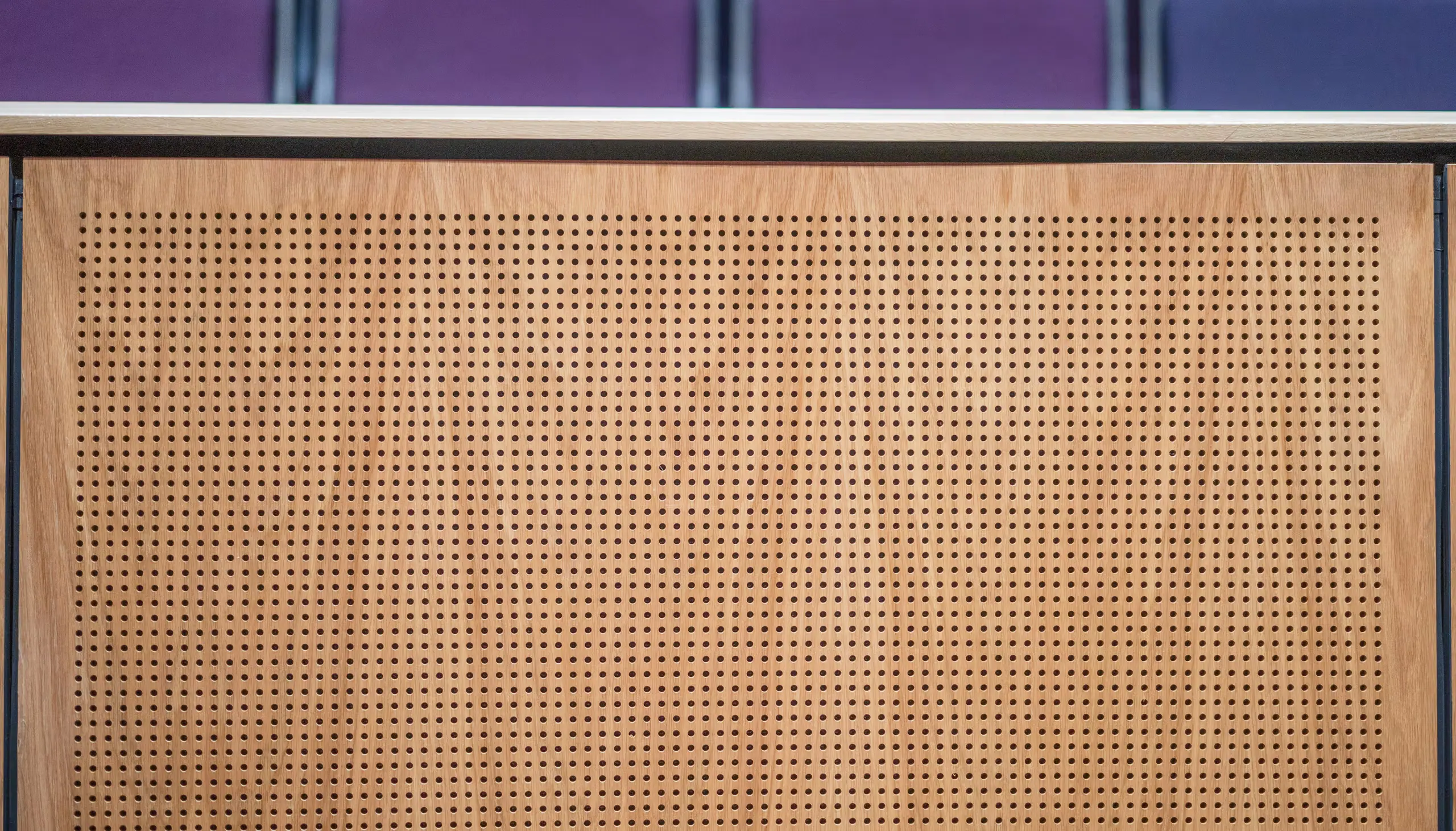

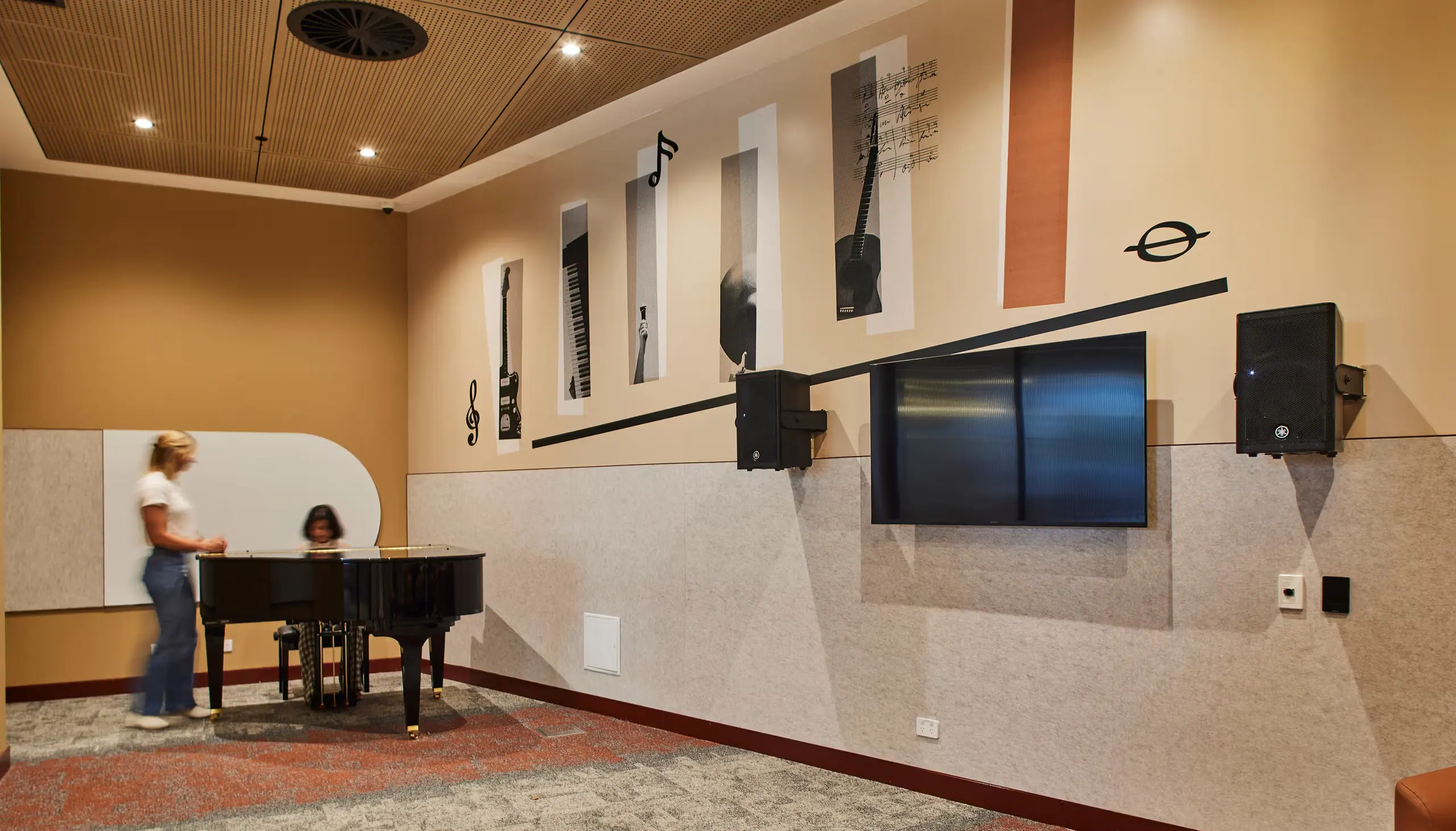

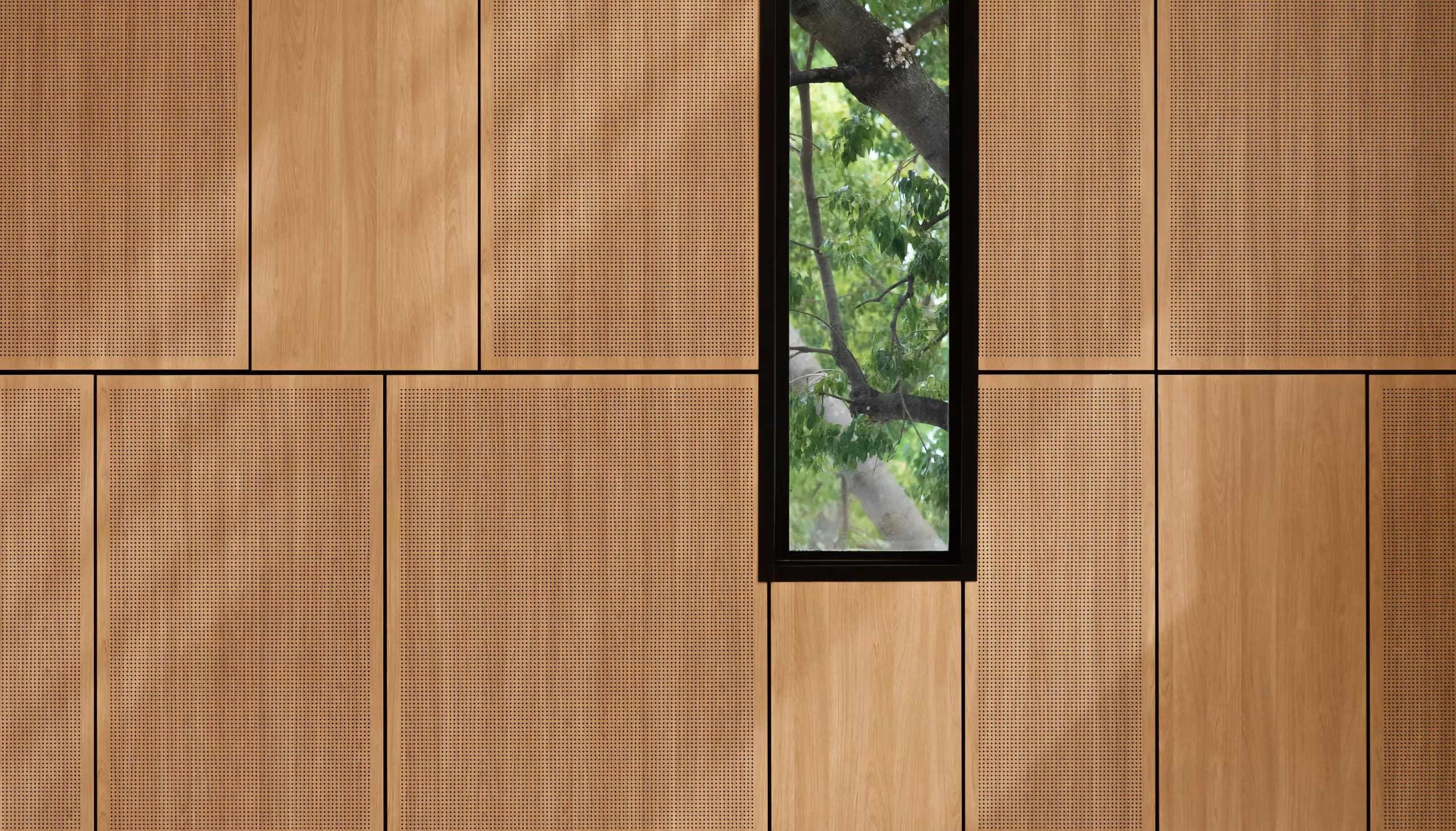

rWood - Perf installation example 1
rWood - Perf installation example 2
rWood - Perf installation example 3
rWood - Perf installation example 4
rWood - Perf installation example 5
rWood - Perf installation example 6
rWood - Perf installation example 7
RESOURCES

Nedladdningar

FULLBORDA STILEN

Accessories

Professional finishing elements for a flawless result

📏

Kantprofiler

Matching profiles for clean panel terminations

🔲

Hörnlösningar

Seamless internal and external corner transitions

⚙️

Monteringsskenor

Concealed aluminium subframe system

🧱

Mineralull

30–50 mm insulation for optimal performance

Redo att transformera ditt utrymme?

Få en skräddarsydd offert för ditt projekt. Vårt team hjälper dig att beräkna rätt antal paneler och hitta den perfekta lösningen.

Begär offertCall Us: +32 3 284 68 18

Free samples available • Made in Europe • FSC® Certified • A2 fire rating available-s1, d0 Fire Rated
