GATAÐAR HLJÓÐFRÆÐILEGAR VIÐARPANELER

rWood - Perf

Nákvæmar götur, hámarks frásog

High-performance drilled acoustic panels combining natural wood beauty with outstanding sound absorption. A Fire Retardant Medium Density Fiberboard core and over-veneered edges deliver the highest levels of fire safety and acoustic control for demanding public spaces.

🔘Kringlóttar götur
🔥B2-s1, d0 Fire Rated
🔇Allt að flokki B
Biðja um tilboðSkoða forskriftir

rWood - Perf acoustic panel
Veldu viðarspjald
Select a veneer

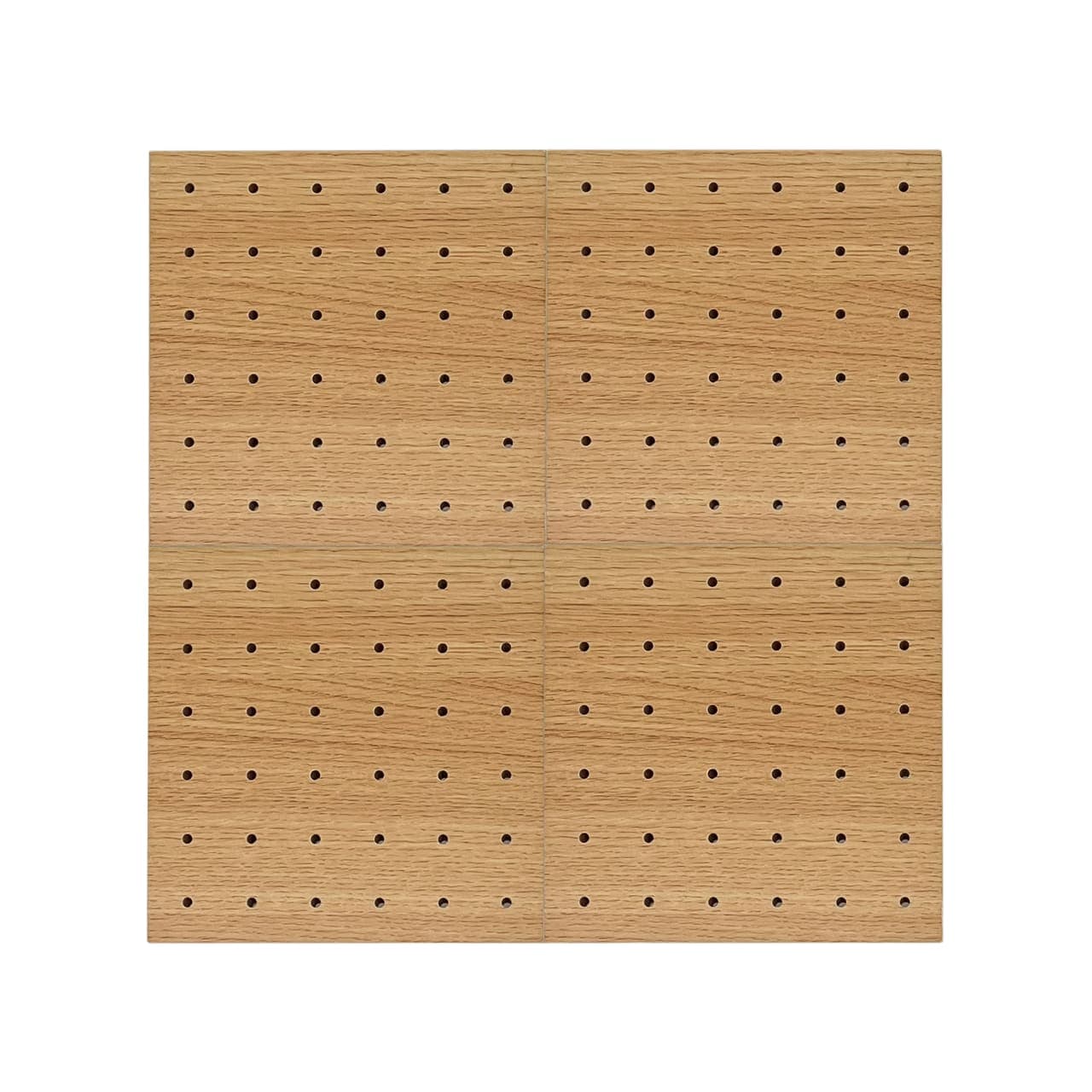

rWood - Perf panel close-up showing round perforations
SÖNNUÐ FRAMMISTAÐA

Nákvæmar götur, hámarks frásog

rWood - Perf panels are one of the most effective and widely used solutions for acoustic walls and ceilings. The precisely drilled round perforations create a large open area that guarantees high levels of sound absorption, while premium wood veneer ensures a natural, warm appearance.

Combined with a Fire Retardant Medium Density Fiberboard core and over-veneered edges for seamless joints, these panels are engineered for the highest demands in large public spaces—from atriums and concert halls to offices and schools.

  • ✓Fire Retardant Medium Density Fiberboard core (B2-s1, d0)
  • ✓Over-veneered edges for seamless joints
  • ✓Light or dark core for pattern discretion
  • ✓Custom formats up to 3050 × 1220 mm
GATAMYNSTUR

Veldu mynstur þitt

Four drilled perforation patterns with calibrated acoustic properties. From maximum open area for demanding acoustic spaces to more discreet patterns that prioritize visual refinement.

PD8

⌀8 mm · 24% open

Maximum absorption, large open area

αw 0.85 · Class B

PH10

⌀10 mm · 18% open

High absorption, bold perforations

αw 0.75 · Class C

PH8

⌀8 mm · 12% open

Balanced look and performance

αw 0.55 · Class D

PH5

⌀5 mm · 5% open

Discreet pattern, subtle surface

αw 0.35 · Class D

Kjarnalitur

Match the core to your veneer to make perforations blend in, or choose a contrasting core for a decorative effect.

SURFACES

Úrvals viðaryfirborð

Every rWood - Perf panel is produced with over-veneered edges—a traditional manufacturing technique where solid wood edging is integrated around the panel before veneering. This gives each panel the appearance of being entirely of wood, with seamless joints across large surfaces.

Nature-spjöld

Lively variations and characteristic expression associated with each wood species. associated with each wood species. Authentic grain patterns and natural beauty.

Gemini-spjöld

Even colour tone and structure for a more harmonious, uniform appearance., uniform appearance across large surfaces.

Yfirborðsfrágangur

Perforated wood panel veneer surface detail
PERFORMANCE

Hannað fyrir hljóð

Precision-drilled perforations allow sound waves to enter the panel and pass through to the cavity behind. Combined with mineral wool insulation, rWood - Perf delivers outstanding broadband absorption across the full frequency spectrum—from low bass to high treble.

Panelþversnið
Viðarspjald + götunOver-veneered, precision-drilled surface
Fire Retardant Medium Density Fiberboard CoreFire Retardant, 0.45 kg/m³ density
HljóðtrefjasplittKemur í veg fyrir trefjaflæði
Steinullarhola30–50 mm for broadband absorption
Hljóðbylgjur ísognar
αw 0.85Frásog
★Allt að flokki B
B-s1, d0
Brunamat
NRC 0.90
Hávaðaminnkun
Independently tested & certified to ISO 11654

Breiðbands ísog

Effective across the full frequency spectrum, from low to high

Hæsta eldvarnaröryggi

B-s1, d0—the highest achievable class for wooden panels

Stillanleg frammistaða

Four perforation patterns for tailored acoustic solutions

FALIN UPPSETNING

Lýtalaus uppsetning

rWood - Perf panels are installed with a concealed clip system designed for precision, speed, and a flawless end result. The system ensures zero-spaced joints and perfectly aligned perforation patterns across multiple panels.

1

Festa undirramma

Install metal rails to wall or ceiling structure

2

Setja einangrun

Add mineral wool in the cavity for optimal absorption

3

Klemmuplötur

Concealed clip system for tool-free, zero-gap mounting

4

Fullkomin samstilling

In-line perforation patterns with seamless over-veneered joints

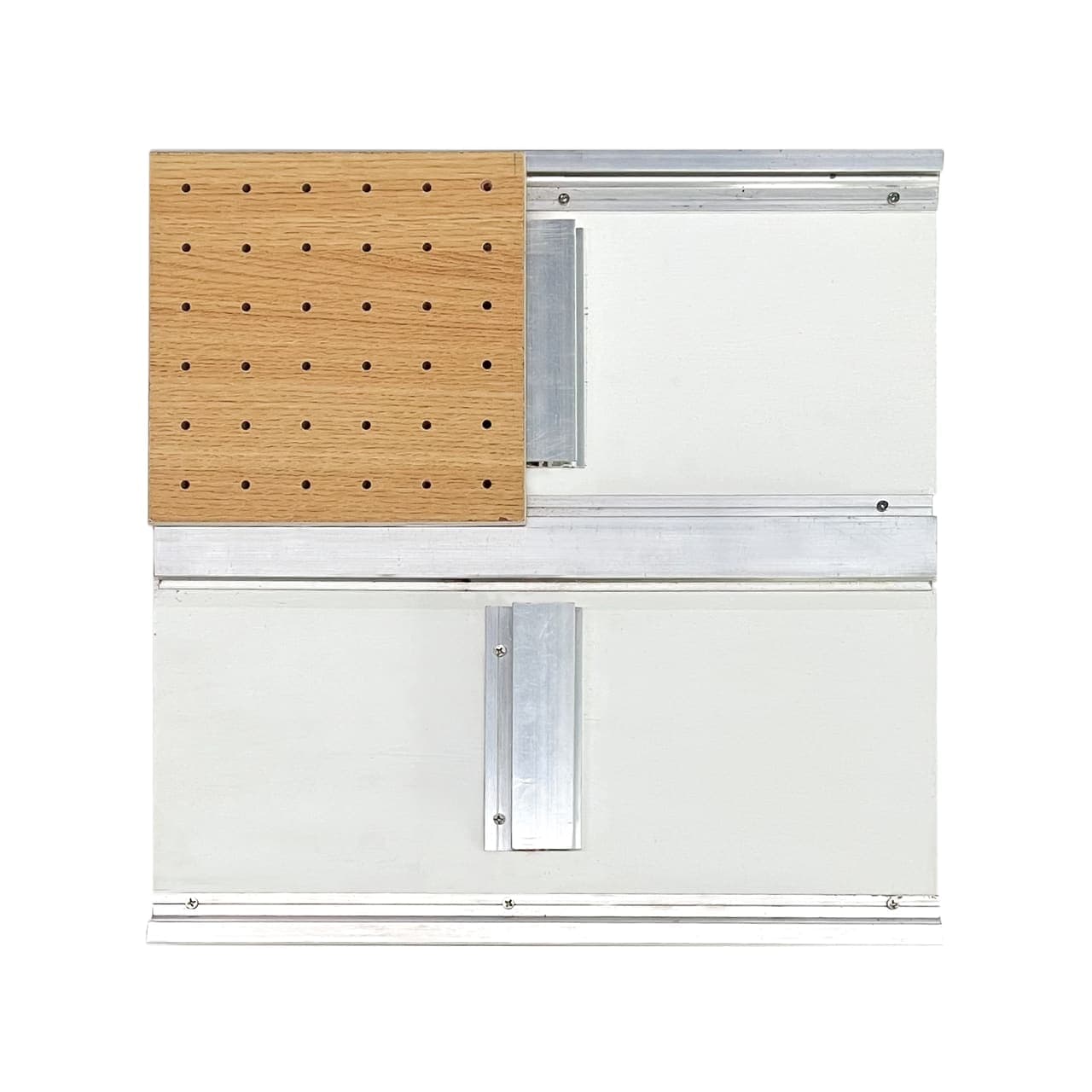

rWood - Perf panel concealed mounting system
Sustainable wood sourcing and production
SJÁLFBÆRNI

Byggt til að vara, byggt á ábyrgðan hátt

rWood - Perf combines durable, natural materials with responsible sourcing. The fibre gypsum core is inherently low-emitting—no chemical impregnation is needed for fire performance—and our veneers come from sustainably managed forests.

🌲

FSC® vottað

Wood from responsibly managed forests

♻️

17% endurunnið innihald

Post-consumer recycled material in core

🏭

Evrópsk framleiðsla

Renewable energy sources, short supply chains

📋

Mjög lág losun

No added formaldehyde, EPD available

TECHNICAL

Forskriftir

Dimensions — Walls and Ceilings

Sérstærðir100–3050 × 100–1220 mm
Þykkt8 - 19 mm
Þyngd~From 0,35 kg/m²
Kjarna þéttleiki48,40 kg/m³

Hljóðvirkni

Absorption coefficient (αw)0.90
With 50mm mineral woolUp to 1.00
Absorption classClass A / C
Test standardISO 354 / ISO 11654

Götunarvalkostir

PD8 (⌀8 mm double)24% open — αw 0.85
PH10 (⌀10 mm)18% open — αw 0.75
PH8 (⌀8 mm)12% open — αw 0.55
PH5 (⌀5 mm)5% open — αw 0.35

Eldvarnir

Bruna-viðbrögðB-s1, d0
Bruna-þolK1-10 / K2-10
CoreBrunahindrun
Test standardEN 13501

Materials

YfirborðSpjald / HPL / filma / málning
CoreMedium Density Fiberboard core (brown / green / black)
BrúnirYfir-spjaldað gegnumheilt tré
Hljóðfræðilegt feltSvart / hvítt

Vottanir

ViðaruppsprettaFSC® vottað
VOC emissionsTVOC approved (ISO 16000)
FormaldehýðEngin viðbætt þvagefnis-formaldehýð
UmhverfislegtEPD tiltækt
INNBLÁSTUR

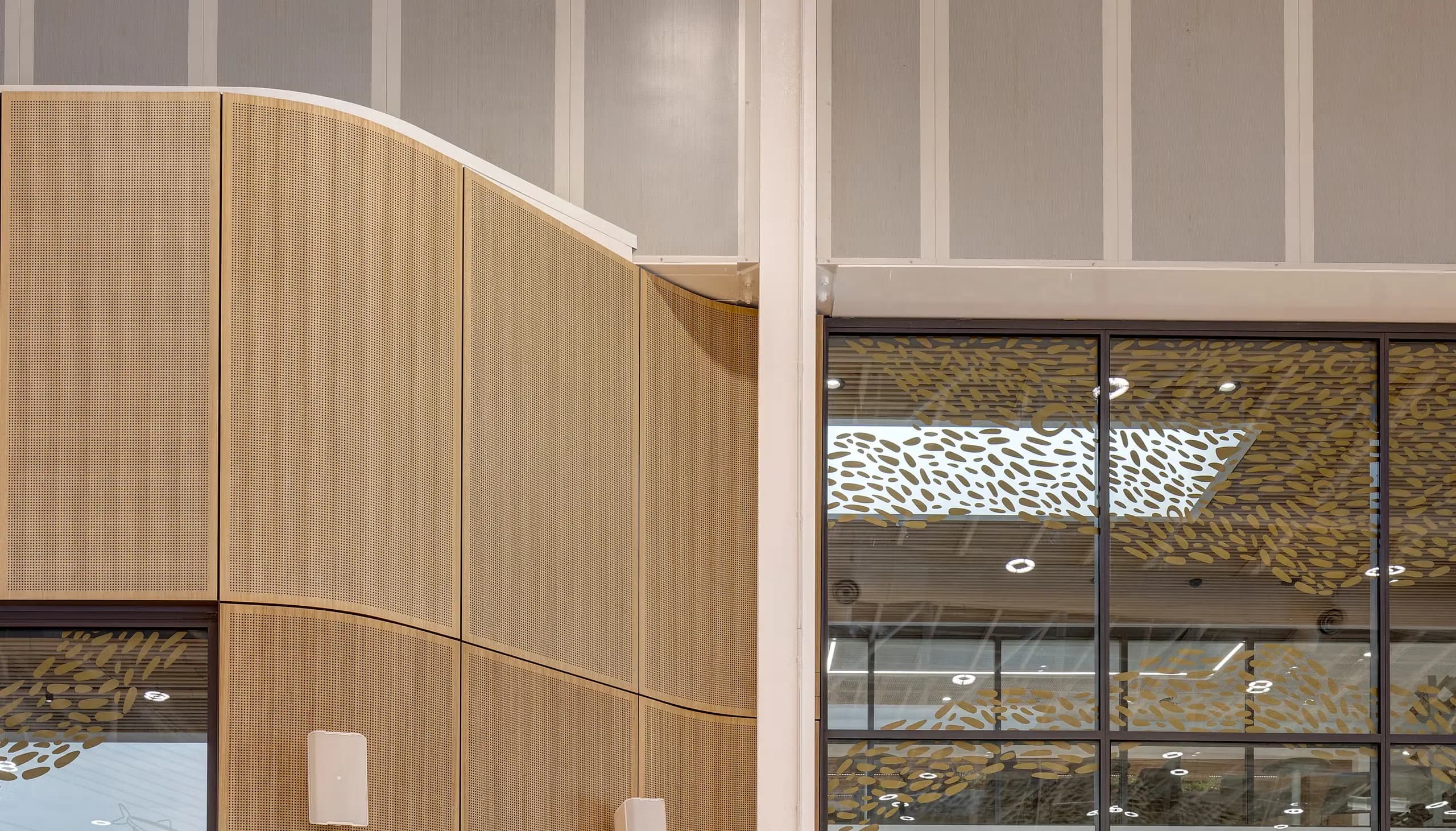

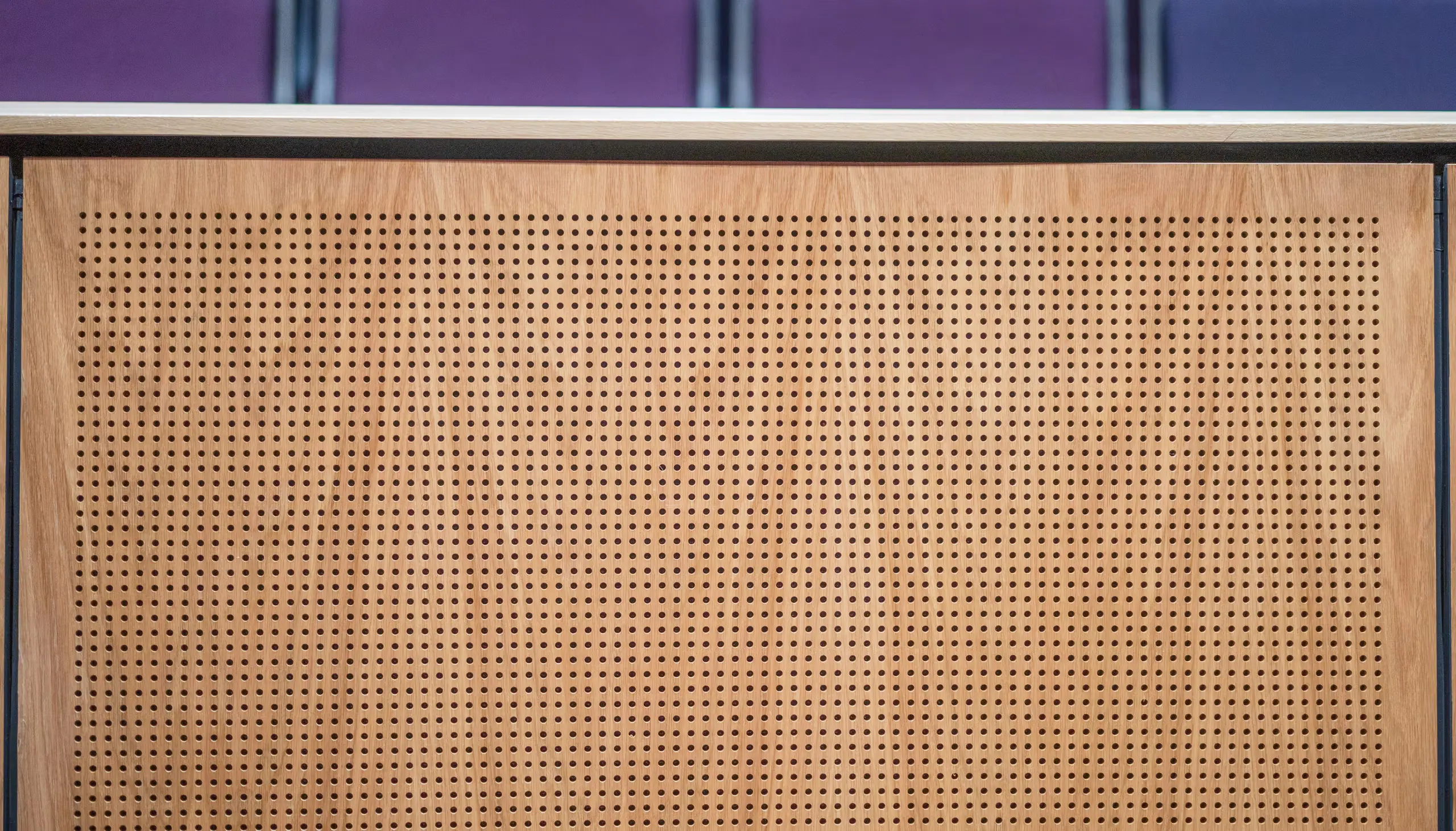

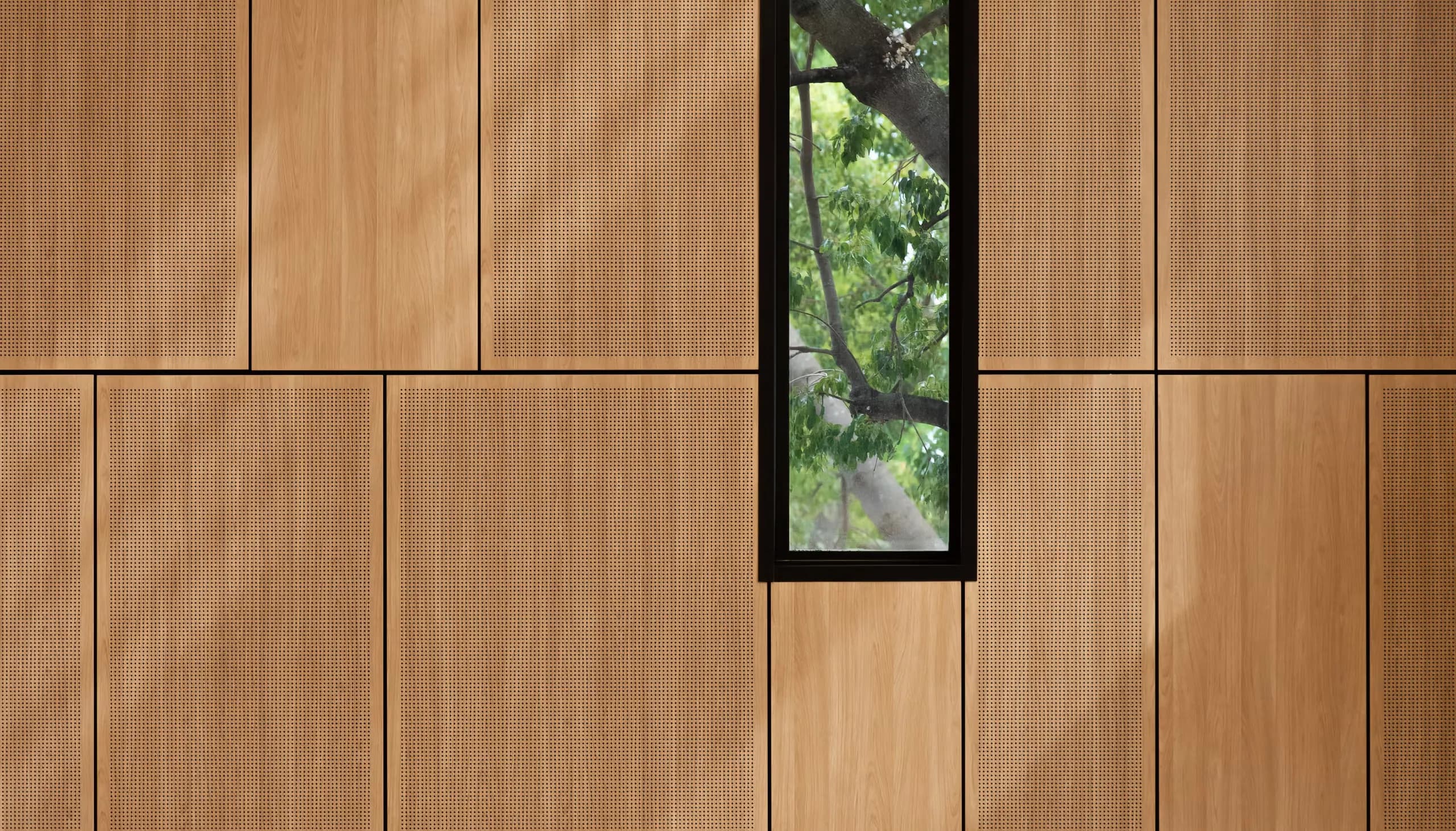

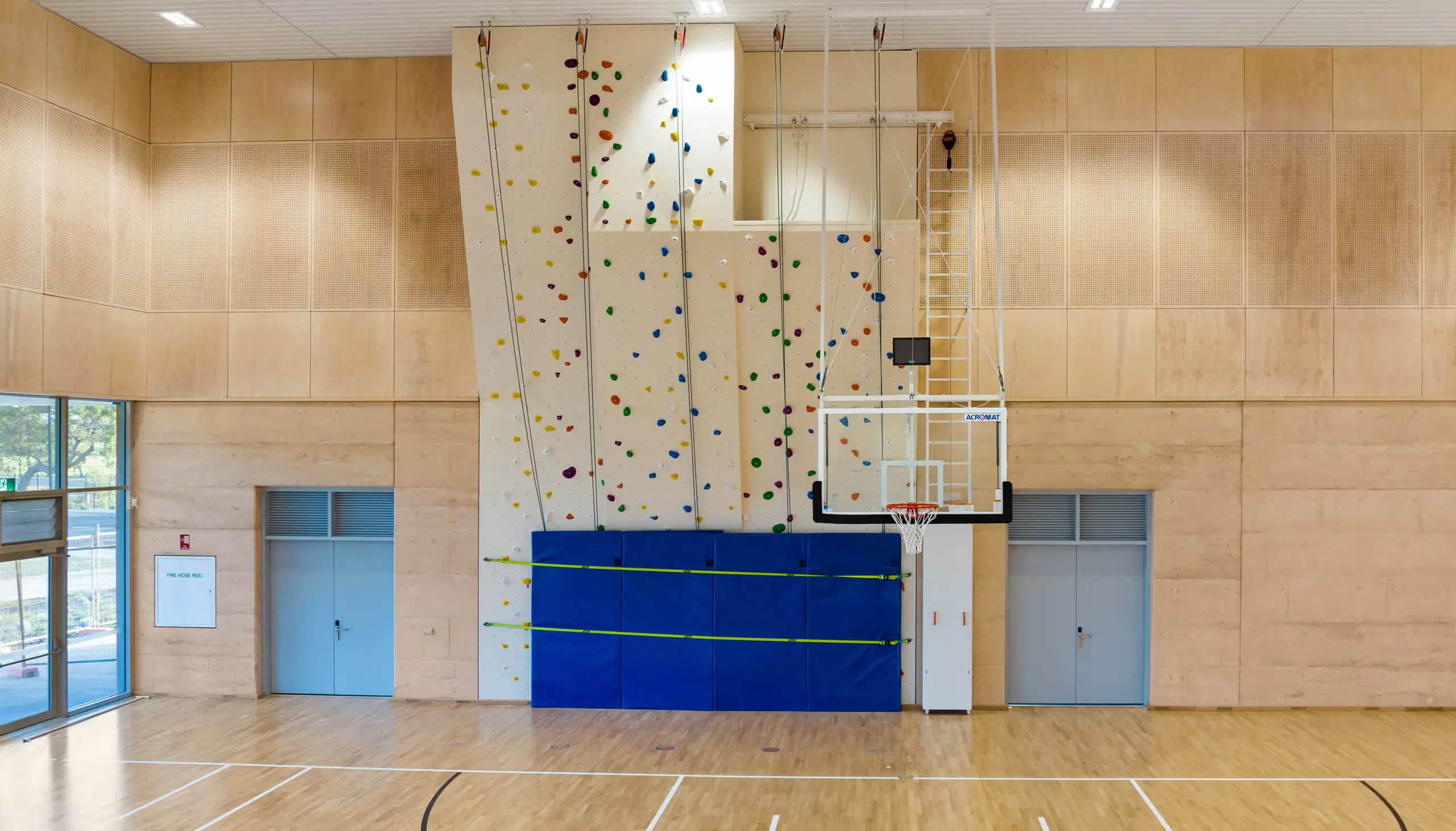

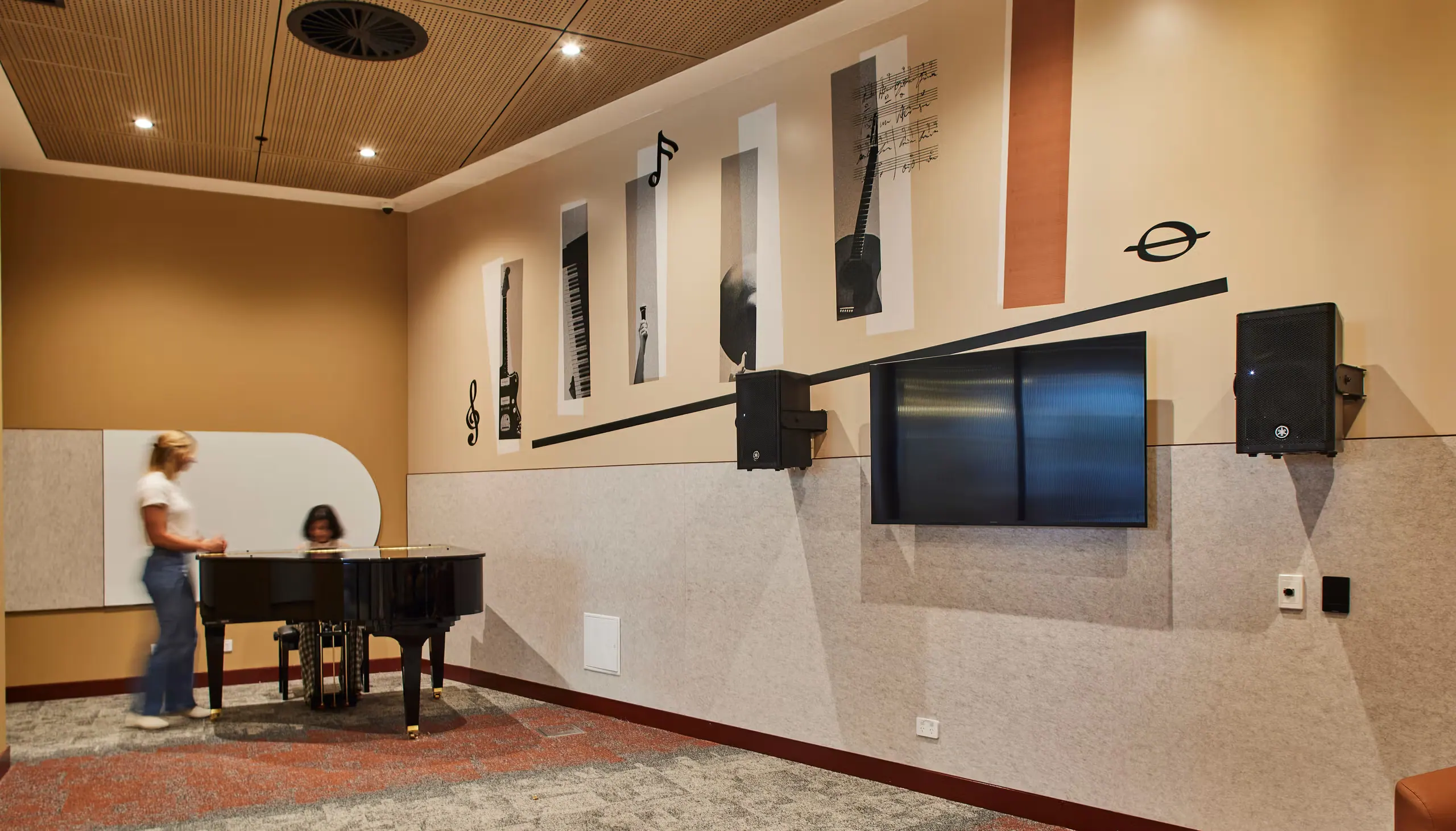

Verkefni og Uppsetningar

rWood - Perf installation example 1
rWood - Perf installation example 2
rWood - Perf installation example 3
rWood - Perf installation example 4
rWood - Perf installation example 5
rWood - Perf installation example 6
rWood - Perf installation example 7
RESOURCES

Niðurhal

FULLKOMNAÐU LÍKIÐ

Accessories

Professional finishing elements for a flawless result

📏

Brúnasnið

Matching profiles for clean panel terminations

🔲

Hornalausnir

Seamless internal and external corner transitions

⚙️

Festibrautir

Concealed aluminium subframe system

🧱

Steinull

30–50 mm insulation for optimal performance

Tilbúinn að umbreyta rýminu þínu?

Fáðu sérsniðið tilboð fyrir verkefnið þitt. Teymið okkar hjálpar þér að reikna rétt magn af panelar og finna fullkomna lausn.

Biðja um tilboðHringdu í okkur: +32 3 284 68 18

Free samples available • Made in Europe • FSC® Certified • A2 fire rating available-s1, d0 Fire Rated
