GROOVED ACOUSTIC WOOD PANEL

rWood Groove: grooved wood acoustic panels in oak and walnut

Natural beauty, perfect acoustics.

A-grade oak or walnut veneer on an MDF core, precision-grooved into vertical lamellas on a 3 mm recycled-PET felt. The open grooves lead sound into the felt; planks join with a concealed tongue-and-groove. Planks of 300 mm wide, 2 400 or 2 780 mm long, in 10 and 19 mm, for walls and ceilings.

Re-Sound is a Stretch Group brand. We manufacture in our own plants in Beveren-Waas (Belgium) and Częstochowa (Poland).

FSC®-certified veneer
Absorption class A
Free take-back at end of life
Request a QuoteView Specifications
rWood Groove grooved acoustic wood planks
Veneer
Select a veneer
mm thickness
10 · 19
αw, absorption class A
0.90
reaction to fire, FR MDF core
B-s1,d0
mm lamellas, Original pattern as standard
6 × 34 mm

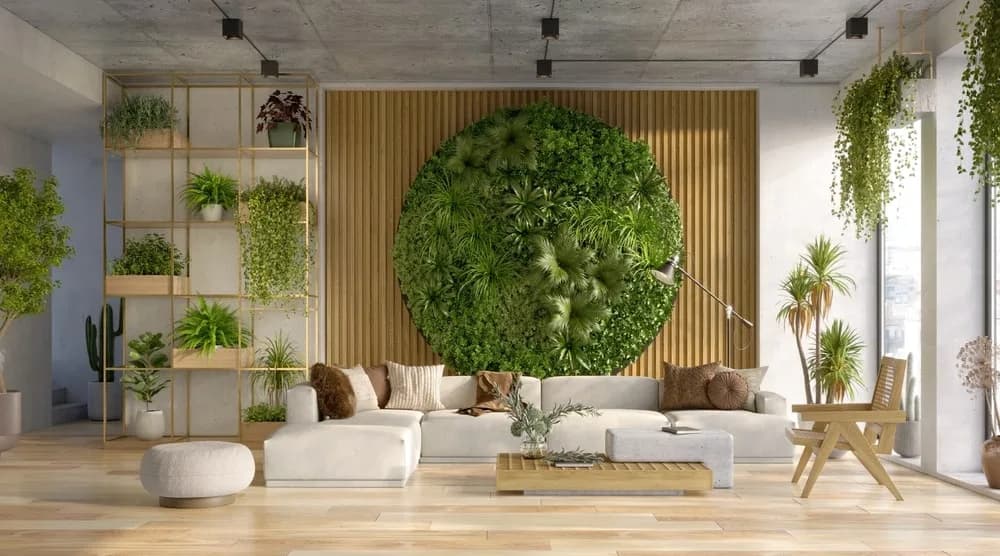

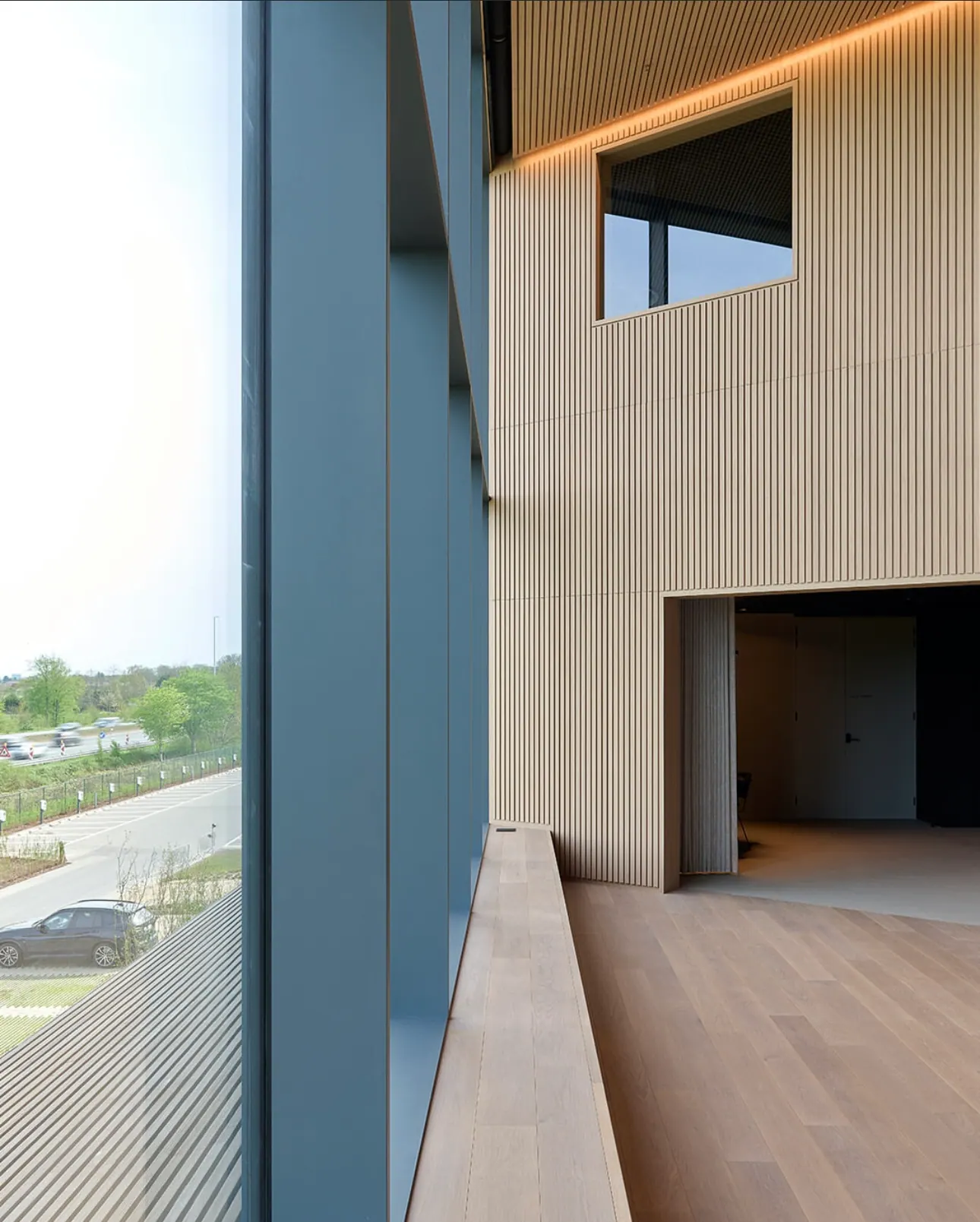

rWood - Groove acoustic panel in modern interior
OVERVIEW

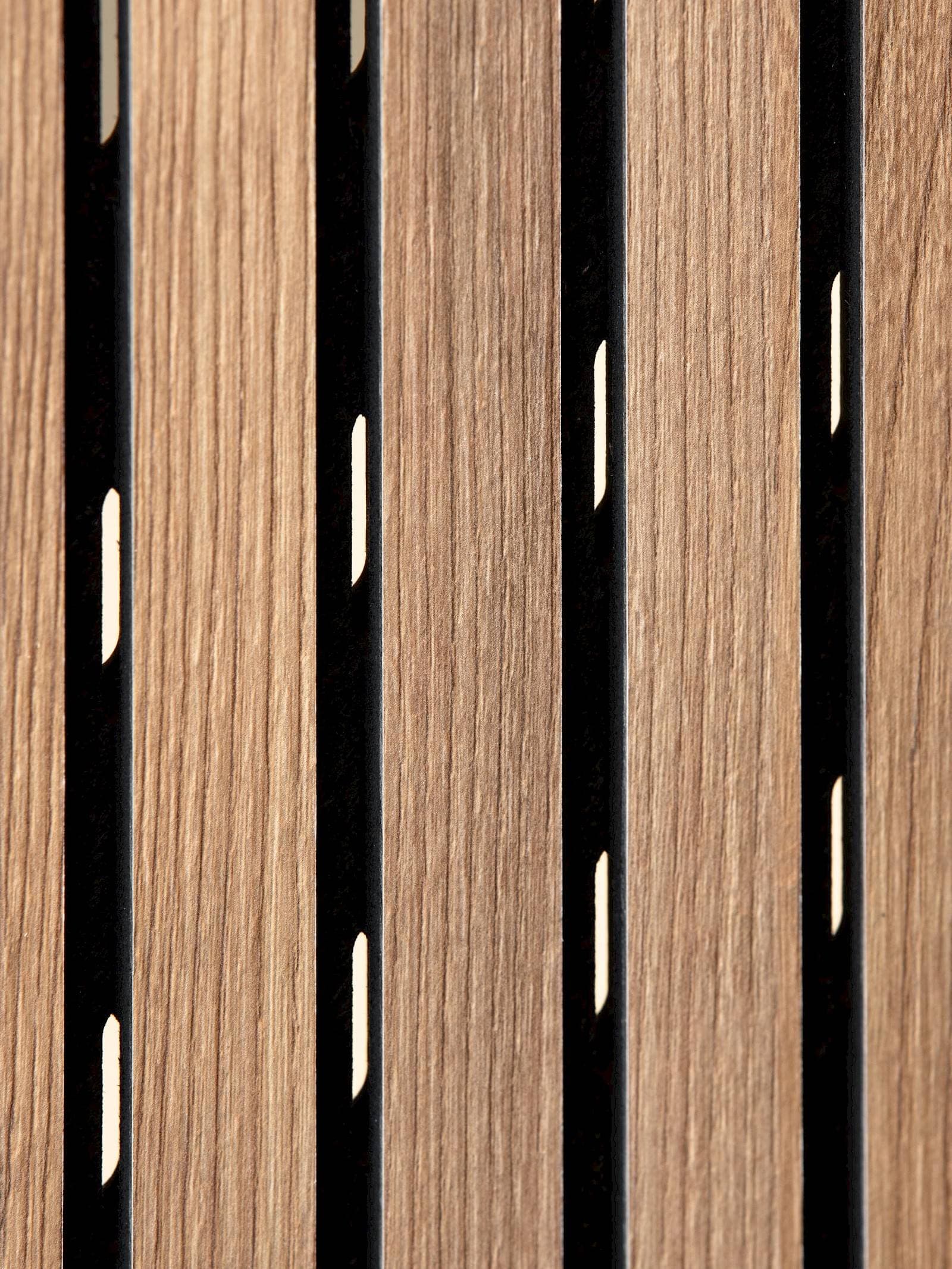

Grooved oak or walnut on recycled-PET felt

rWood Groove combines an A-grade oak or walnut veneer with an MDF core that is precision-grooved into vertical lamellas. The 3 mm recycled-PET felt behind the lamellas takes the sound that enters through the open grooves, which cuts reverberation and improves speech clarity. The Original lamella pattern as standard and other patterns on request, five stock veneers, and any veneer and finish to order.

  • ✓A-grade oak or walnut veneer
  • ✓3 mm recycled-PET felt backing, black or grey
  • ✓Concealed tongue-and-groove connection
  • ✓For walls and ceilings, interior dry areas
BUILD-UP

Three layers, one plank

  1. 01
    Veneer faceA-grade oak or walnut
  2. 02
    MDF lamellasStandard, MR or FR core
  3. 03
    Recycled-PET felt3 mm, black or grey

Fixed on battens or glued to the substrate.

PATTERNS

One standard pattern, others on request

Original, the standard pattern: six lamellas of 34 mm on a 300 mm plank, grooves 15 mm wide, drawn to scale. Any other lamella layout is made on request.

Standard pattern

Original

6 × 34 mm

Classic 6-lamella design

6 lamellas

Other patterns on request

  • Mixed6 × 50 / 30 / 22 mm
  • 4-Lamella4 × 59 mm
  • 3-Lamella3 × 84 mm

Mixed widths (6 × 50 / 30 / 22 mm), four lamellas of 59 mm, three of 84 mm or your own layout on the same 300 mm plank: send us a drawing and we quote it.

Request a Quote

Plank width 300 mm, groove width 15 mm. Standard size 19 × 300 × 2 400 or 2 780 mm. Weight per plank approx. 6.4–8.3 kg. Tolerances: thickness ± 0.2 mm, weight ± 10 %.

VENEERS AND FINISHES

Oak and walnut, any veneer to order

Five stock veneers, oiled or lacquered. Select a veneer to see it on the plank.

Oak: penetrating oil or lacquer

Finish: penetrating oil or lacquer. Oak oil colours: Natural, White, Clear, Brown, Dark Brown and Black.

Walnut

Natural, oiled. Rich, figured brown (Walnut) or warm mid-brown (Tobacco Walnut).

Felt colour

3 mm recycled-PET felt behind the lamellas, visible through the grooves.

  • Black
  • Grey

All twelve rWood veneers are shown in the rWood colour and finish guide. Real wood varies in colour and grain: ask for samples before you specify.

ACOUSTICS

Sound absorption

The open grooves lead sound into the recycled-PET felt behind the lamellas, which cuts reverberation and improves speech clarity.

Sound absorption
Absorption coefficient (αw)0.90
Absorption classA
Test standardEN ISO 354 · EN ISO 11654

Behind the plank

Mounted on battens, the cavity can take an extra absorber: acoustic felt, an rPET panel or mineral wool.

αw and absorption class to EN ISO 11654. Octave-band values follow with the new test series.

INSTALLATION

Tongue-and-groove, on battens or glued

Planks are fixed on battens or glued to the substrate and join with a concealed tongue-and-groove, so the joints disappear in the groove pattern.

  1. 01

    Surface

    Battens or adhesive on a clean, dry, level surface.

  2. 02

    First plank

    Start from a corner and check the level.

  3. 03

    Connect

    Slide the tongue into the groove for a seamless joint.

  4. 04

    Finish

    Close the edges with end mouldings.

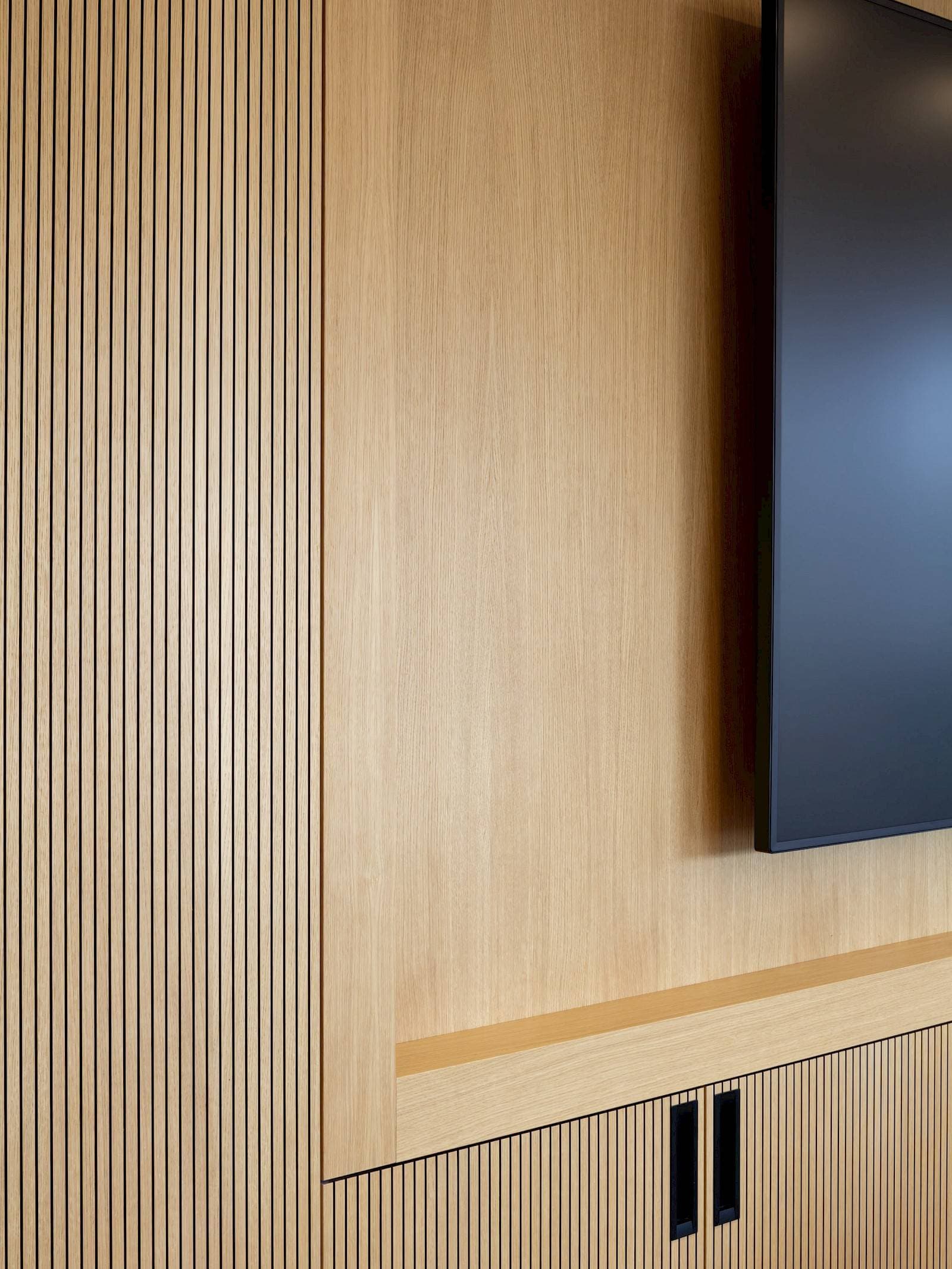

Panel installation process
Sustainable forestry
SUSTAINABILITY

Responsibly sourced

FSC®-certified wood, a backing of recycled PET and a free take-back at end of life.

FSC® certified

Wood sourcing FSC®-certified, certificate C191539

Recycled-PET felt

3 mm felt backing made of recycled PET, OEKO-TEX® Standard 100

Made in Poland

Manufactured in our own plant in Częstochowa (Poland)

EPD

Environmental product declaration to ISO 14025 and EN 15804

Free take-back

Panels come back to us free of charge at end of life

TECHNICAL DATA

Plank, fire and emissions

Plank

Width300 mm
Length2 400 · 2 780 mm
Thickness10 / 19 mm
Groove15 mm wide, 7 · 15 mm deep
FeltRecycled PET, 3 mm, black or grey
ConnectionConcealed tongue-and-groove
EnvironmentInterior (dry areas)
Weight per plankapprox. 6.4–8.3 kg
TolerancesThickness ± 0.2 mm, weight ± 10 %

Sound absorption

Absorption coefficient (αw)0.90
Absorption classClass A
Test standardEN ISO 354 · EN ISO 11654
Octave-band valuesFollow with the new test series

Fire (EN 13501-1) and emissions

Standard MDF coreD-s2,d2
FR MDF coreB-s1,d0
Felt backingB-s1,d0
FormaldehydeE1
Wood sourcingFSC®-certified, C191539
Felt certificationOEKO-TEX® Standard 100
EnvironmentalEPD to ISO 14025 · EN 15804
Made inCzęstochowa, Poland

Finish

FinishPenetrating oil or lacquer
Oak oil coloursNatural, White, Clear, Brown, Dark Brown, Black
WalnutNatural, oiled
Felt coloursBlack or grey

Options

CoreStandard, MR or FR MDF
SurfaceOiled or painted, untreated on request
Made to orderAny veneer and finish
AccessoriesEnd mouldings, corner profiles, battens, touch-up kit
ORDERING

Lead time and samples

Order
Lead timeSubject to stock, confirmed on order
Minimum orderOn request
Sizes300 × 2 400 · 2 780 mm · 10 / 19 mm
Supply
SamplesFree veneer samples
PricesOn request
Made inCzęstochowa, Poland

End of life

Re-Sound takes panels back free of charge at end of life in Belgium, the Netherlands, France, Germany and Luxembourg.

Samples and quotes

Order free veneer samples or send us your plans for a quote.

Request samplesRequest a quote

Data reflects our current knowledge and may change without notice.

RESOURCES

Downloads

Leave your details and we e-mail you the document.

ACCESSORIES

Accessories

End mouldings, corner profiles, battens and a touch-up kit.

End Mouldings

Clean edges where panels meet other surfaces

Corner Profiles

Seamless internal and external corner solutions

Mounting Battens

Hidden fixing system for walls and ceilings

Touch-up Kit

Matching oils for repairs and maintenance

FAQ

Frequently asked questions

Where does the FSC-certified veneer come from?

The veneer is FSC®-certified: chain-of-custody certificate C191539. All twelve rWood veneers come from responsibly managed forests; the certificate is available on request.

What is the fire rating?

It depends on the core. With the fire-retardant (FR) MDF core, rWood Groove is classified B-s1,d0 to EN 13501-1; on a standard MDF core the classification is D-s2,d2. The felt backing is B-s1,d0. Specify the FR core for escape routes and public buildings.

What is the standard lead time?

The lead time is subject to stock and is confirmed on order. Free veneer samples are available before you specify; prices and the minimum order on request.

How are rWood panels installed?

rWood Groove is fixed on battens or glued to a clean, dry, level substrate. Start from a corner, slide the tongue of each plank into the groove of the previous one for a seamless joint, and close the edges with end mouldings.

What happens to the panels at end of life?

Re-Sound takes the planks back free of charge at end of life in Belgium, the Netherlands, France, Germany and Luxembourg.
