PERFORATED ACOUSTIC WOOD PANEL

rWood Perf: perforated wood acoustic panels

Precision perforations, maximum absorption.

Round perforations drilled through the veneered, fire-retardant MDF panel let sound pass into the acoustic fleece and the absorber behind it. Four patterns, from a discreet 5 mm hole to a double 8 mm pattern with 24 % open area.

Each panel is cut to your drawings, up to 3 050 × 1 220 mm and 10 or 19 mm thick, for walls and ceilings. Choose one of the eight stock veneers or order any veneer and finish.

Re-Sound is a Stretch Group brand. We manufacture in our own plants in Beveren-Waas (Belgium) and Częstochowa (Poland).

Round perforations
B-s1,d0 reaction to fire
αw 0.35–0.85 by pattern
Request a QuoteView Specifications

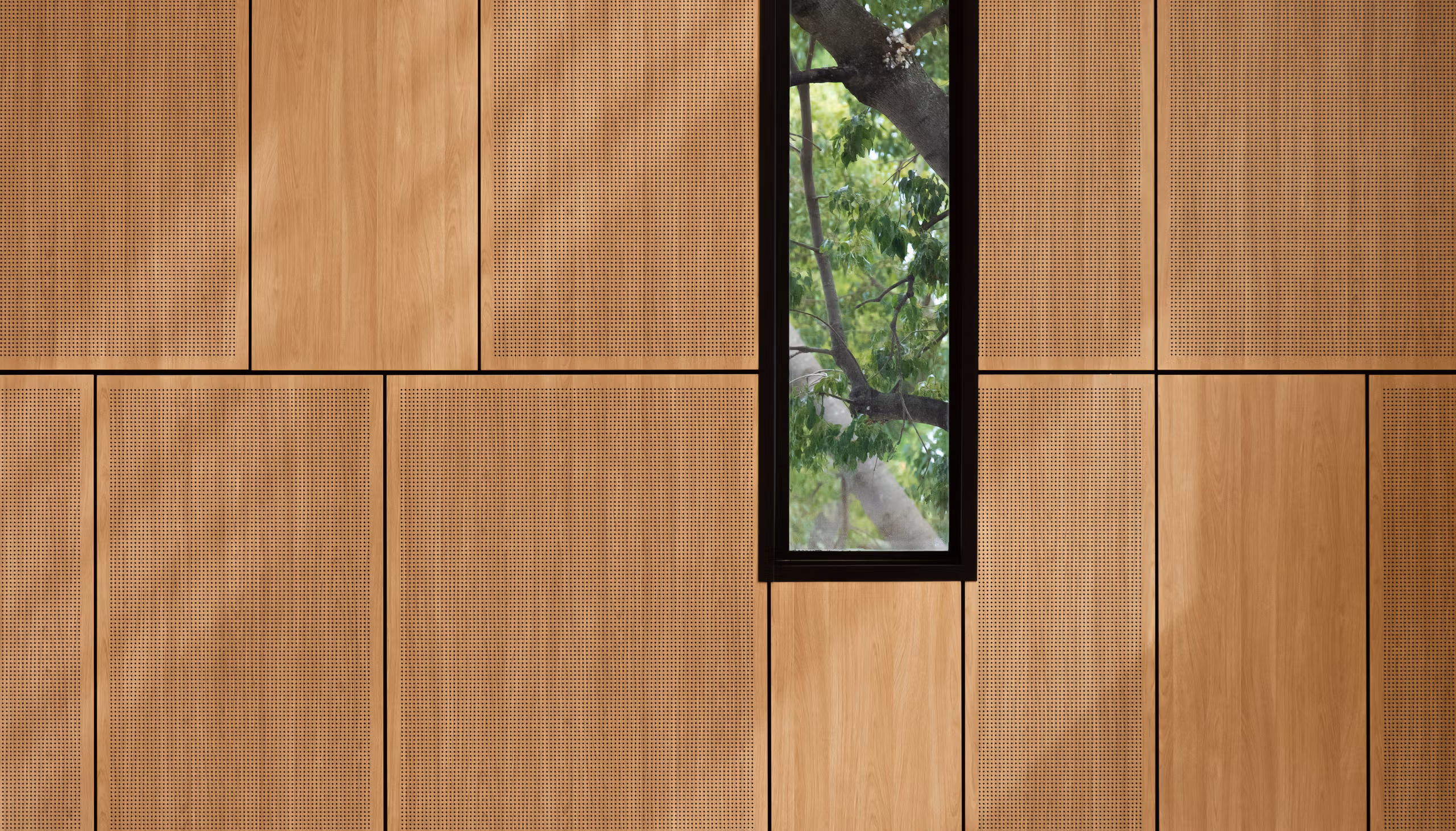

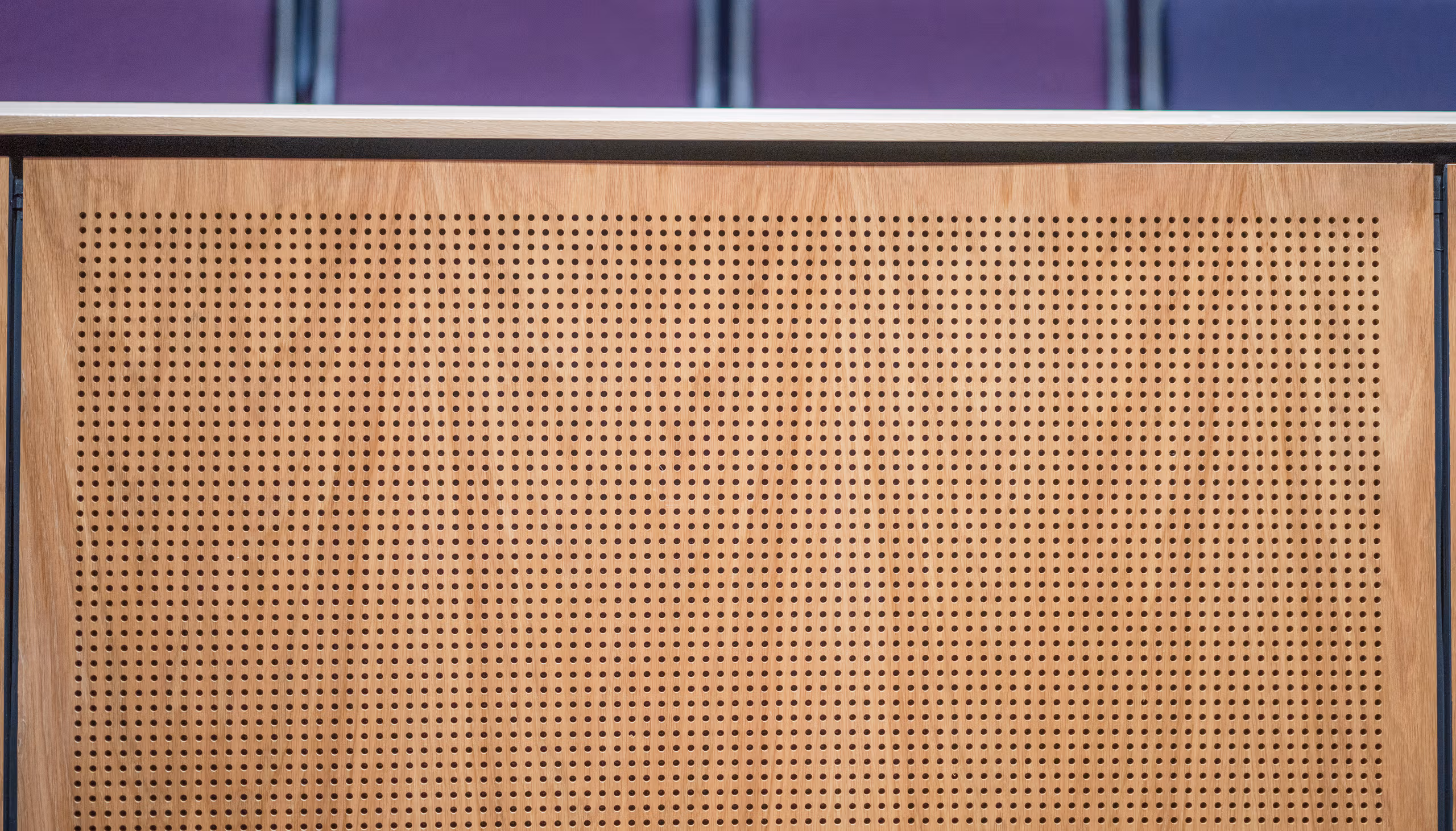

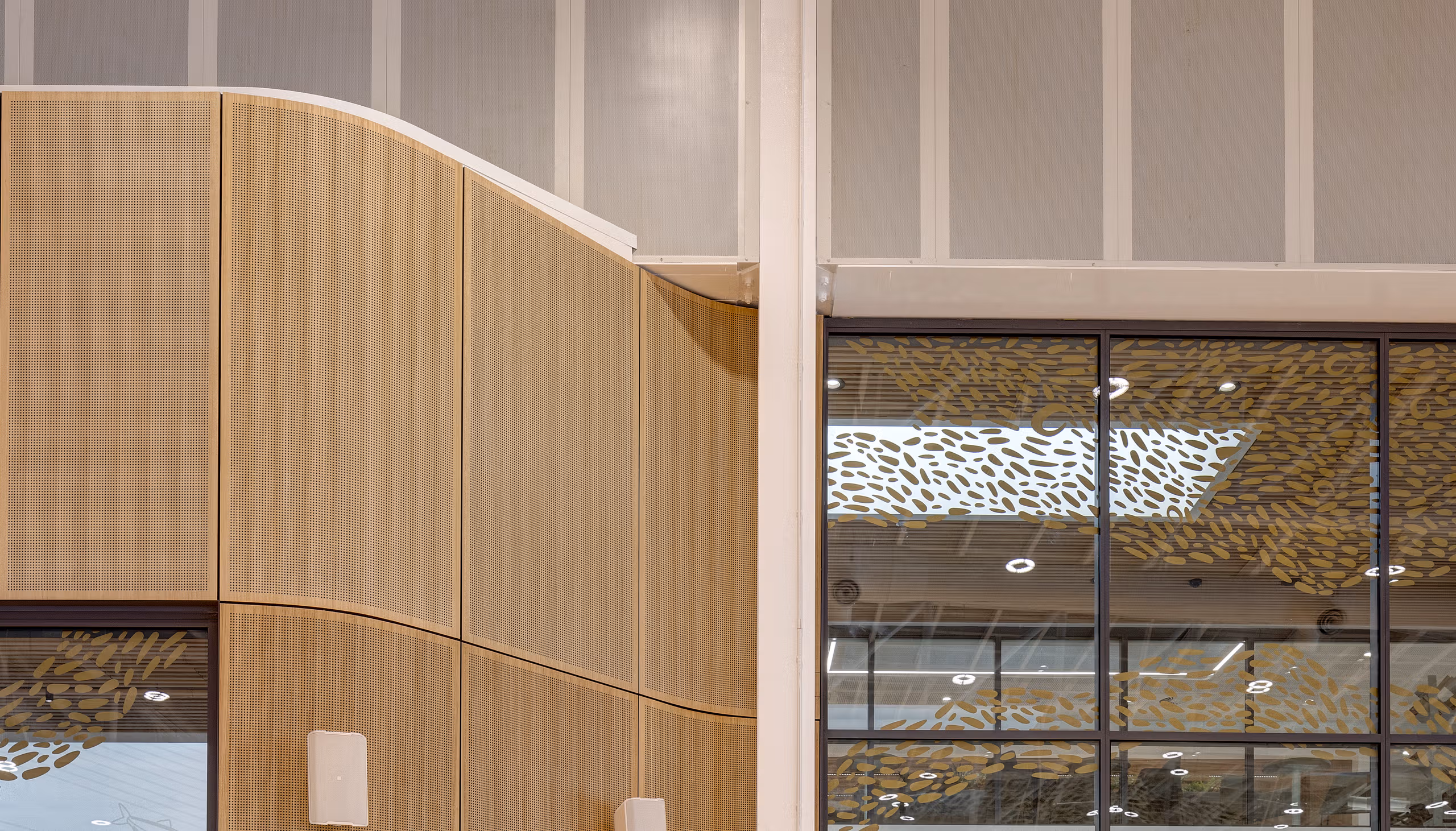

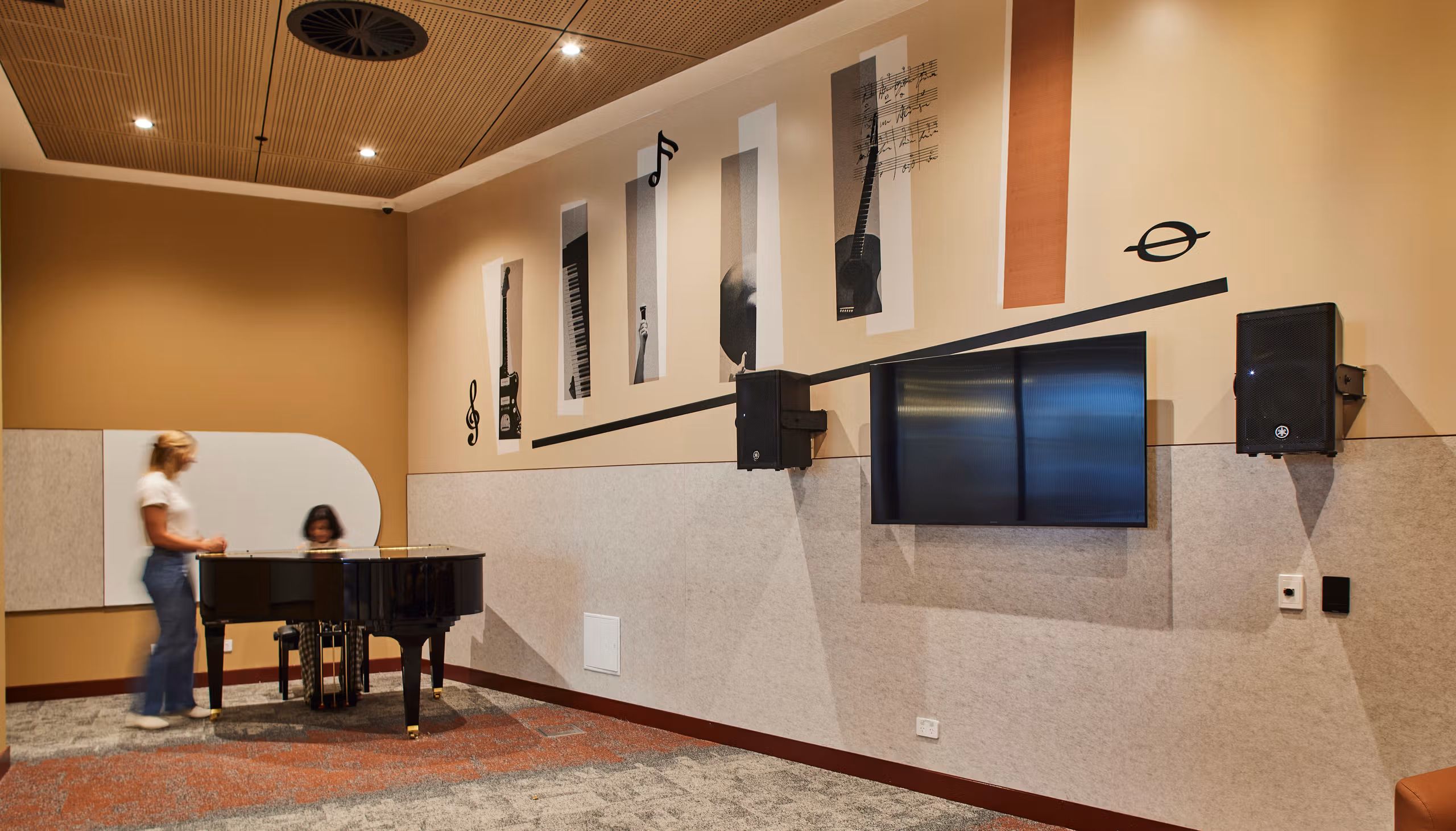

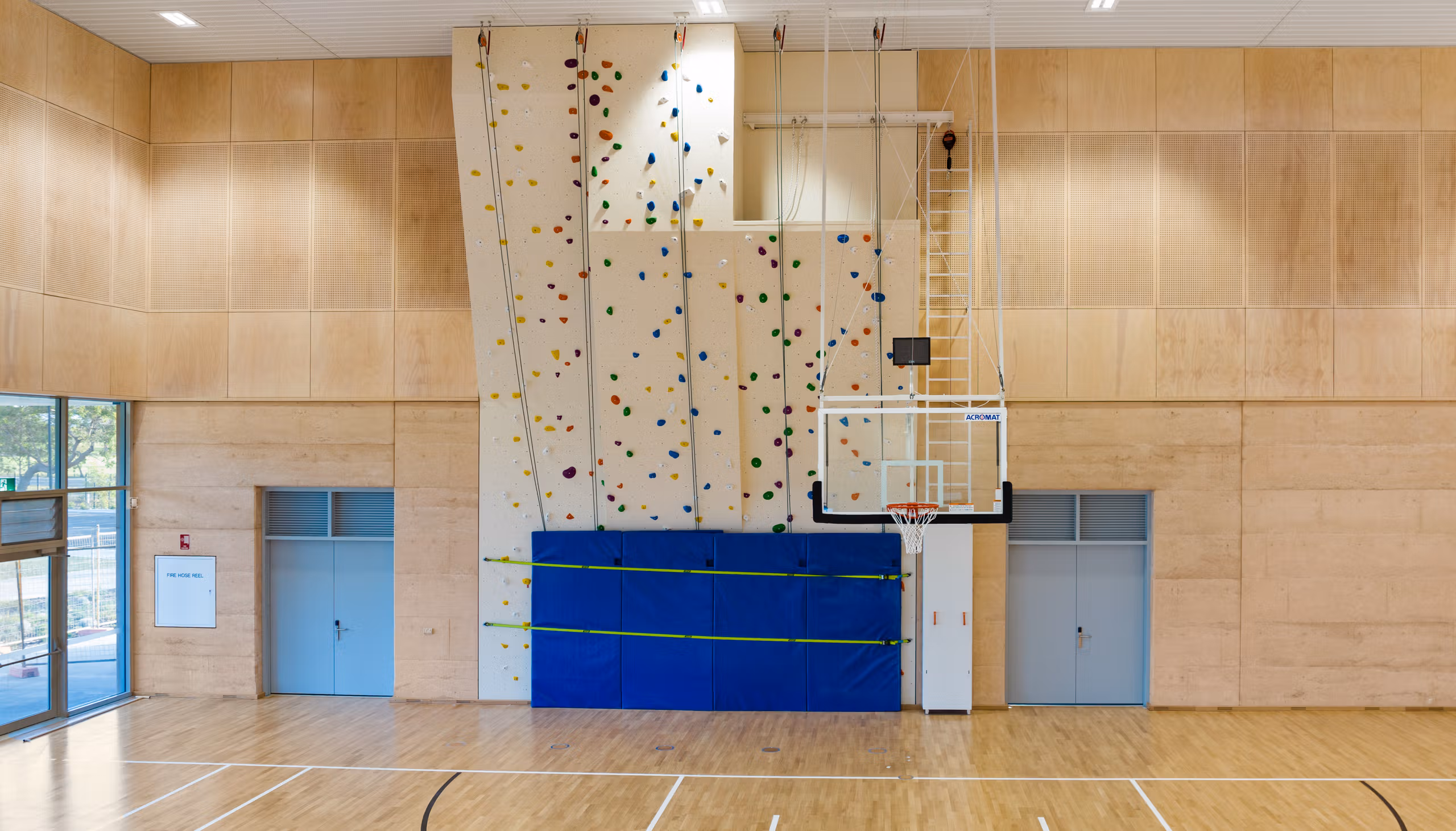

rWood Perf perforated acoustic wood panels on a wall
Stock veneers
Select a veneer
10 / 19 mmpanel thickness, made to measure
0.85αw with pattern PD8, 0.35–0.85 by pattern
B-s1,d0reaction to fire, FR MDF core
PD8standard pattern, 2 × Ø 8 mm · 24 % open; three more on request
PROVEN PERFORMANCE

The larger the open area, the higher the absorption

rWood Perf is a veneered, fire-retardant MDF panel with round perforations drilled through it. Sound passes through the holes into the acoustic fleece and the cavity behind the panel, where it is absorbed.

Four patterns let you choose between absorption and discretion: from a discreet 5 mm hole with 5 % open area to the double 8 mm pattern PD8 with 24 % open area.

  • Fire-retardant MDF core (B-s1,d0)
  • Light or dark core to hide or contrast the perforations
  • Made to measure up to 3 050 × 1 220 mm, in 10 and 19 mm
  • Concealed clips, tool-free, zero-gap, patterns aligned from panel to panel
Build-up
  1. 01
    Perforated veneerA-grade, drilled Ø 5 to 10 mm
  2. 02
    FR MDF coreLight or dark, drilled through
  3. 03
    Acoustic fleeceBlack or white

Behind the panel: cavity with mineral wool.

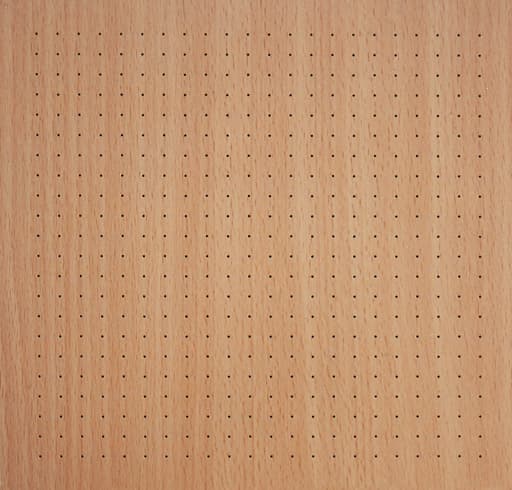

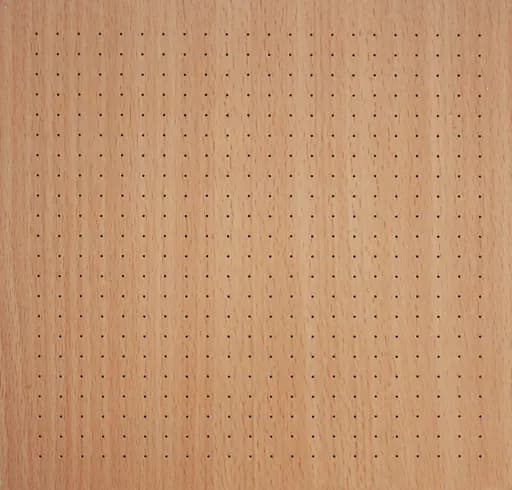

Close-up of the round perforations of an rWood Perf panel
PERFORATION

Four perforation patterns

Hole size and open area per pattern. The larger the open area, the higher the absorption.

Standard pattern

PD8

2 × Ø 8 mm · 24 % open

Double pattern, maximum absorption

PH10

Ø 10 mm · 18 % open

High absorption, bold perforations

PH8

Ø 8 mm · 12 % open

Balanced look and performance

PH5

Ø 5 mm · 5 % open

Discreet pattern, subtle surface

Drawings about 1:2, hole size and open area as stated per pattern.

PD8 is the standard pattern and the one behind the headline figures. PH10, PH8 and PH5 and other perforation patterns (hole size, spacing, open area) are made on request from your drawing.

Core colour

A light or dark FR MDF core, visible through the holes: match it to the veneer to make the perforations blend in, or contrast it for a graphic effect.

  • Light core
  • Dark core
Veneers

Eight stock veneers, any veneer to order

Perforations cut straight through the veneer, so grain and colour matter twice: on the face and around every hole. All eight stock veneers are FSC®-certified; as wood is a natural material, panels differ from one to the next and the swatches on screen only give an impression.

Beech White Ash veneer
Beech White AshEuropeStraight to interlocked
Birch Rotary veneer
Birch RotaryScandinaviaSubtle fine grain
Silk Oak veneer
Silk OakEuropeFine straight grain
Straw Oak veneer
Straw OakEuropeCathedral grain
Umber Oak veneer
Umber OakEuropePronounced grain
American Walnut veneer
American WalnutNorth AmericaStraight to wavy
Smoked Oak veneer
Smoked OakEuropeDeep cathedral grain
Tobacco Walnut veneer
Tobacco WalnutNorth AmericaRich flowing grain

Made to order

Beyond the eight stock veneers, we make any veneer species, stain colour and finish.

Finish

UV-cured lacquer from super matt to high gloss, natural or pigmented.

A natural material

Real wood varies in colour and grain. Ask for samples before you specify.

ACOUSTICS

Sound absorption

Sound passes through the perforations into the acoustic fleece and the cavity behind the panel. The larger the open area, the higher the absorption.

Sound absorption
αw, by pattern0.35–0.85
With 50 mm mineral woolαw up to 1.00
NRC0.90
Test standardEN ISO 354 · EN ISO 11654
Mounting in testCavity with mineral wool backing
PatternOpen areaαwClass
PD824 %0.85B
PH1018 %0.75C
PH812 %0.55D
PH55 %0.35D
αs per octave band, pattern PD8 with cavity
0.35125 Hz
0.70250 Hz
0.95500 Hz
1.001k Hz
0.952k Hz
0.854k Hz

αs per octave band: pattern PD8 with cavity, indicative. Figures depend on the pattern, the cavity depth and the absorber behind the panel.

INSTALLATION

Concealed clip system for walls and ceilings

Metal rails, mineral wool in the cavity, then the panels clip on without tools and without gaps, the perforation pattern running on from panel to panel.

  1. 01

    Subframe

    Metal rails on the wall or ceiling structure.

  2. 02

    Insulation

    Mineral wool in the cavity for best absorption.

  3. 03

    Panels

    Concealed clips, tool-free, zero-gap mounting.

  4. 04

    Result

    Patterns aligned from panel to panel.

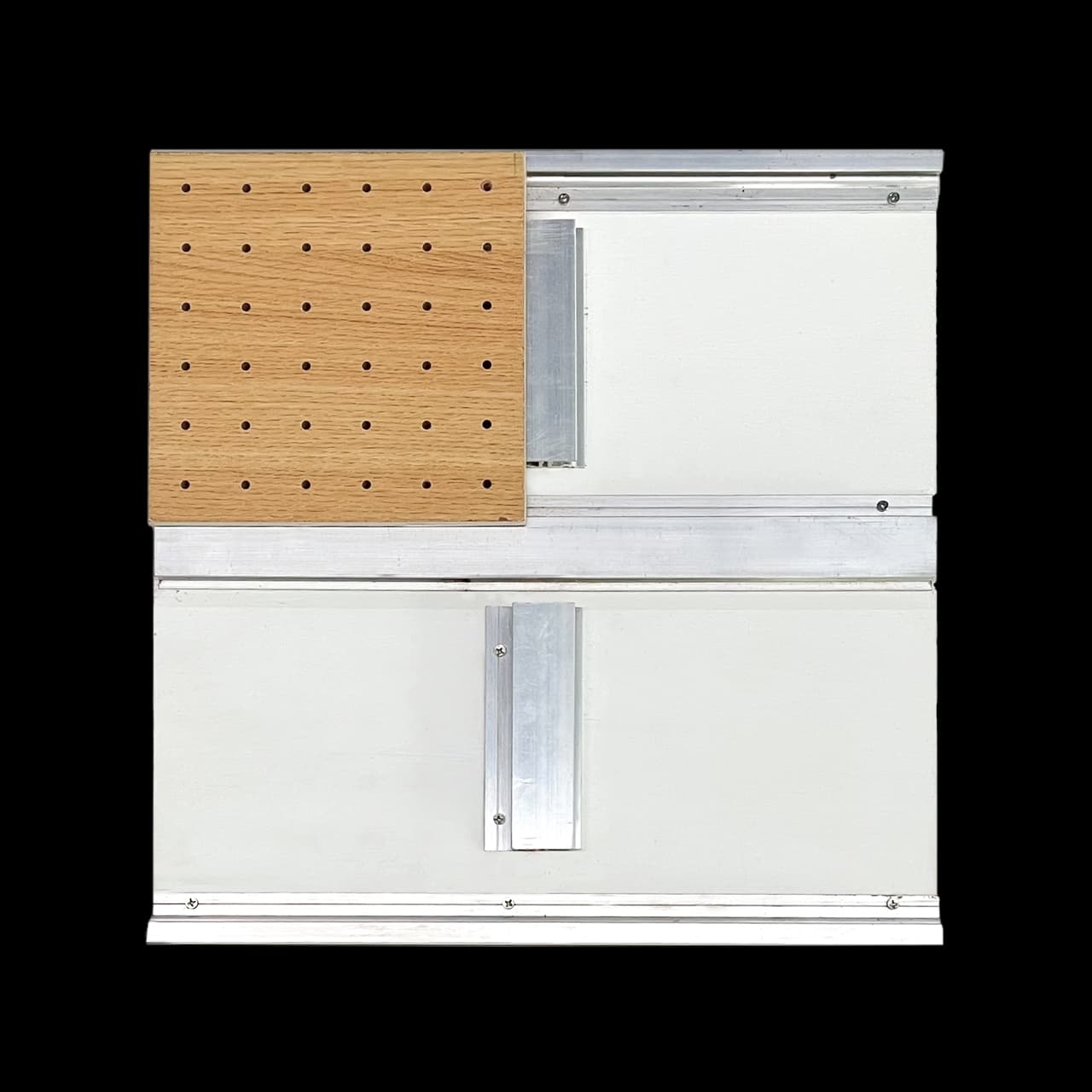

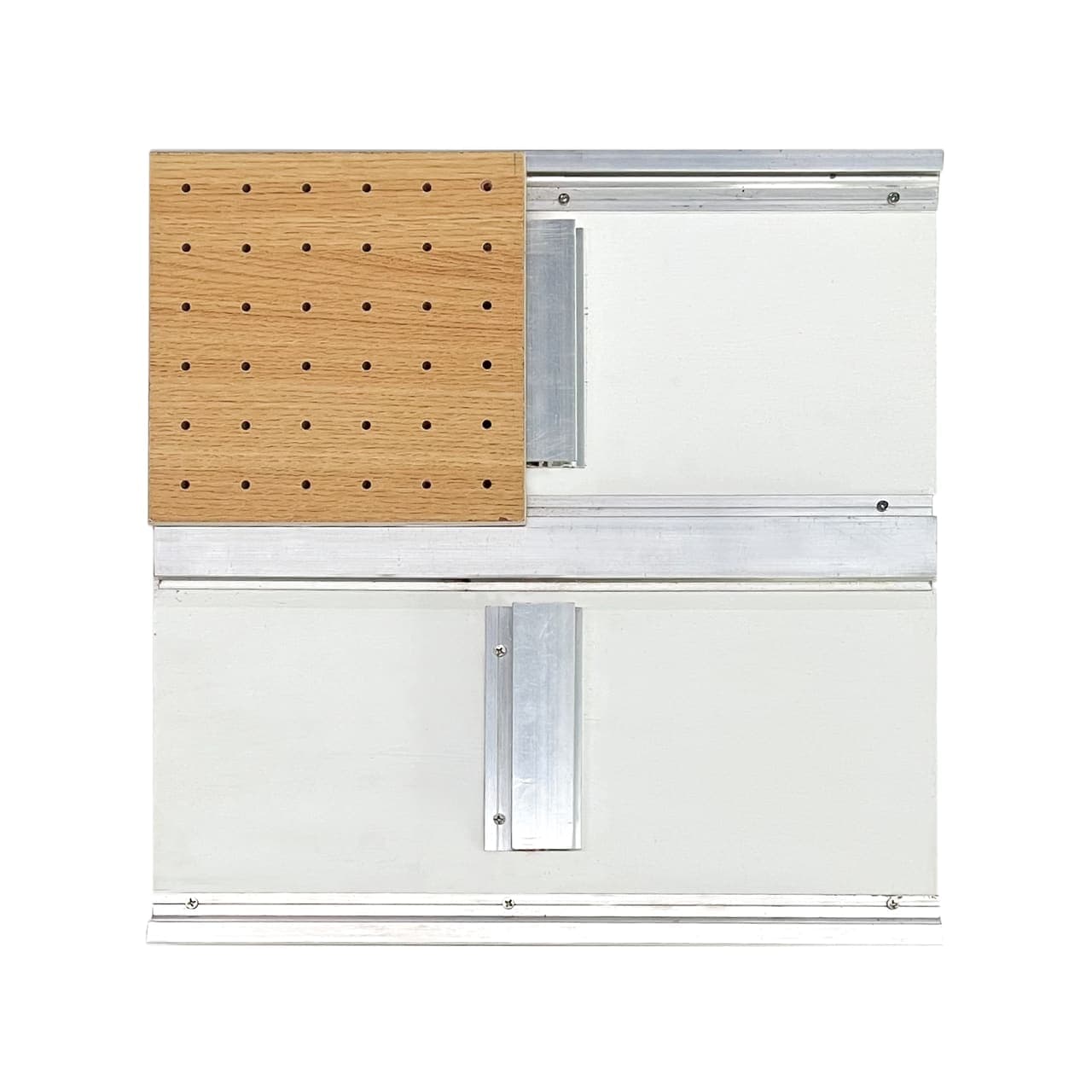

Metal rails and concealed clips of the rWood Perf mounting system
MADE TO MEASURE

From your drawings

rWood Perf is made to measure for walls and ceilings: from 100 × 100 mm up to 3 050 × 1 220 mm, in 10 and 19 mm, in any of the four patterns.

Custom dimensions

From a 100 × 100 mm infill to a full 3 050 × 1 220 mm sheet, each perforated panel is cut to the dimensions on your drawings.

Any veneer and finish

Eight stock veneers; any other veneer species, stain colour and finish to order.

Free veneer samples

Real wood varies in colour and grain. Ask for samples before you specify.

FSC-certified wood veneer
SUSTAINABILITY

Responsibly made

FSC®-certified veneer, formaldehyde class E1 and production in our own plant in Częstochowa. At end of life we take the panels back free of charge in Belgium, the Netherlands, France, Germany and Luxembourg.

FSC®-certified veneer

Wood from responsibly managed forests, FSC® certificate C191539

17 % recycled content

Recycled material in the panel

Made in Poland

Manufactured in our own plant in Częstochowa (Poland)

Formaldehyde class E1

Low-emission FR MDF core, for interior, dry areas

TECHNICAL DATA

Panel, fire and emissions

Panel

Sizes100–3 050 × 100–1 220 mm
Thickness10 / 19 mm
CoreFR MDF, light or dark
Acoustic fleeceBlack or white
Made inCzęstochowa, Poland

Sound absorption

Absorption coefficient (αw)0.35–0.85 (per pattern)
With 50 mm mineral woolαw up to 1.00
NRC0.90
Test standardEN ISO 354 · EN ISO 11654
Mounting in testCavity with mineral wool backing

Perforation patterns

PD82 × Ø 8 mm · 24 % open · standard pattern
PH10Ø 10 mm · 18 % open
PH8Ø 8 mm · 12 % open
PH5Ø 5 mm · 5 % open

Fire and emissions

Reaction to fireB-s1,d0
Fire standardEN 13501-1
Wood sourcingFSC®-certified, C191539
FormaldehydeE1
EnvironmentInterior, dry areas

Surface and options

Surface treatmentsNatural lacquer · pigmented · HPL laminate · foil · paint
LacquerUV-cured, super matt to high gloss, natural or pigmented
Veneer rangesNature (lively, characterful grain) · Gemini (even, uniform tone)
Core coloursBrown, green or black: light or dark to hide or contrast the perforations
EdgesOver-veneered solid wood for seamless joints

Installation

ApplicationWalls and ceilings
SubframeMetal rails
MountingConcealed clips, tool-free, zero-gap
RESOURCES

Downloads

Leave your details and we e-mail you the document.

ORDERING

Lead times and samples

Lead time
Stock veneers3–4 weeks
Non-stock and custom6–8 weeks
Made to measureFrom your drawings
Supply
SamplesFree veneer samples
SizesUp to 3 050 × 1 220 mm
Minimum orderOn request
PricesOn request
DeliveryOn request

End of life

Re-Sound takes panels back free of charge at end of life in Belgium, the Netherlands, France, Germany and Luxembourg.

Samples and quotes

info@re-sound.be · +32 3 284 68 18
Showroom: Gentseweg 309 A3, 9120 Beveren-Waas, Belgium

Request samplesRequest a quote

Data reflects our current knowledge and may change without notice.

FAQ

Frequently asked questions

Where does the FSC-certified veneer come from?

Every veneer we drill for rWood Perf is FSC®-certified under chain-of-custody certificate C191539. The eight stock veneers come from forests in Europe, Scandinavia and North America; ask us for the certificate with your quote.

What is the fire rating?

With its fire-retardant MDF core, rWood Perf is classified B-s1,d0 to EN 13501-1. The panel is intended for interior, dry areas.

What is the standard lead time?

A perforated panel in a stock veneer leaves the plant 3–4 weeks after your order; a species we do not keep in stock, or a custom finish, needs 6–8 weeks. Every panel is drilled and cut to your drawings.

How are rWood panels installed?

With a concealed clip system: metal rails on the wall or ceiling structure, mineral wool in the cavity, then the panels clip on without tools and without gaps, so the perforation pattern runs on from panel to panel.

What happens to the panels at end of life?

At the end of their life, rWood Perf panels come back to us: the take-back is free of charge in Belgium, the Netherlands, France, Germany and Luxembourg.
