MICRO-PERFORATED ACOUSTIC WOOD PANEL

rWood Micro: micro-perforated acoustic wood panels

Invisible perforation, exceptional acoustics.

Micro-perforations from 0.5 mm in the A-grade veneer open onto sound chambers in the fire-retardant MDF core, backed by an acoustic fleece. From a normal viewing distance the holes disappear into the wood.

Made to measure for walls and ceilings, up to 3 050 × 1 220 mm, in 10 and 19 mm. Eight stock veneers, any veneer and finish to order.

Re-Sound is a Stretch Group brand. We manufacture in our own plants in Beveren-Waas (Belgium) and Częstochowa (Poland).

Invisible perforations
Class A absorption
B-s1,d0 reaction to fire
Request a QuoteView Specifications

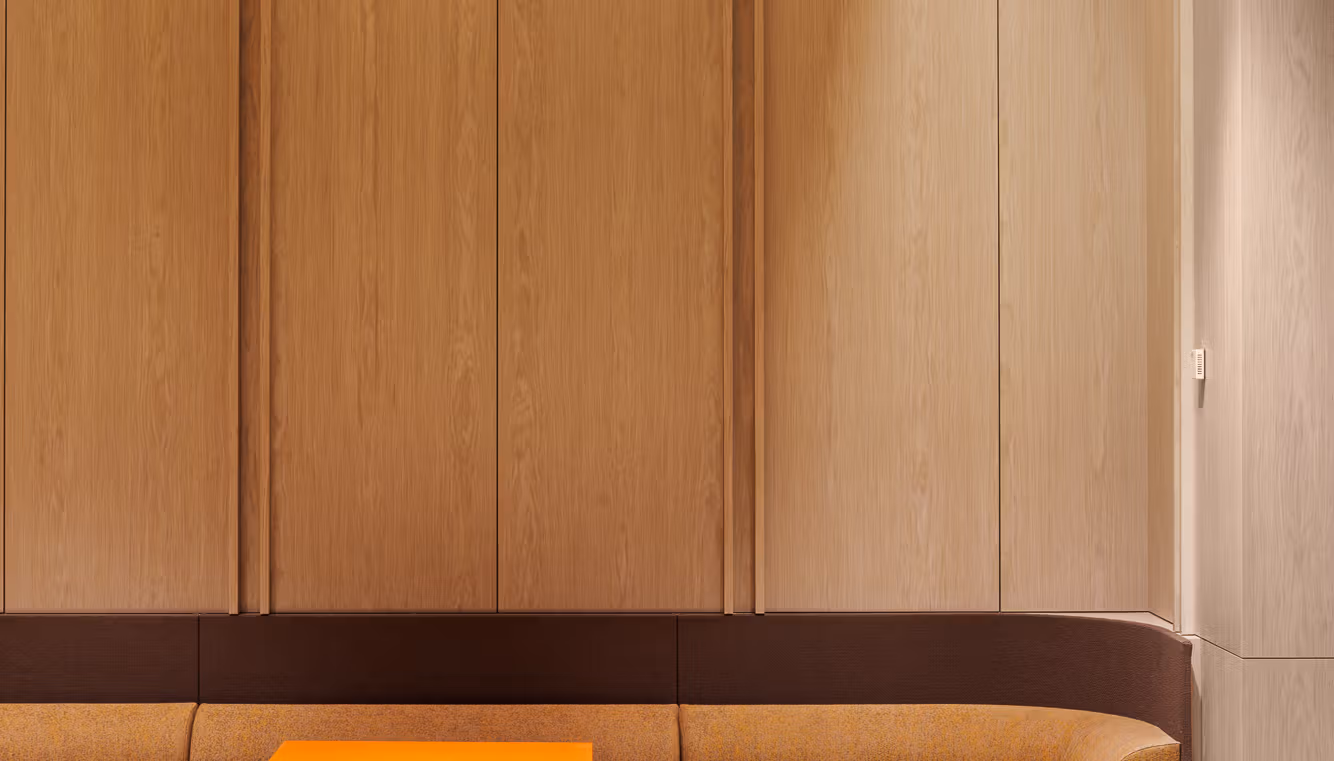

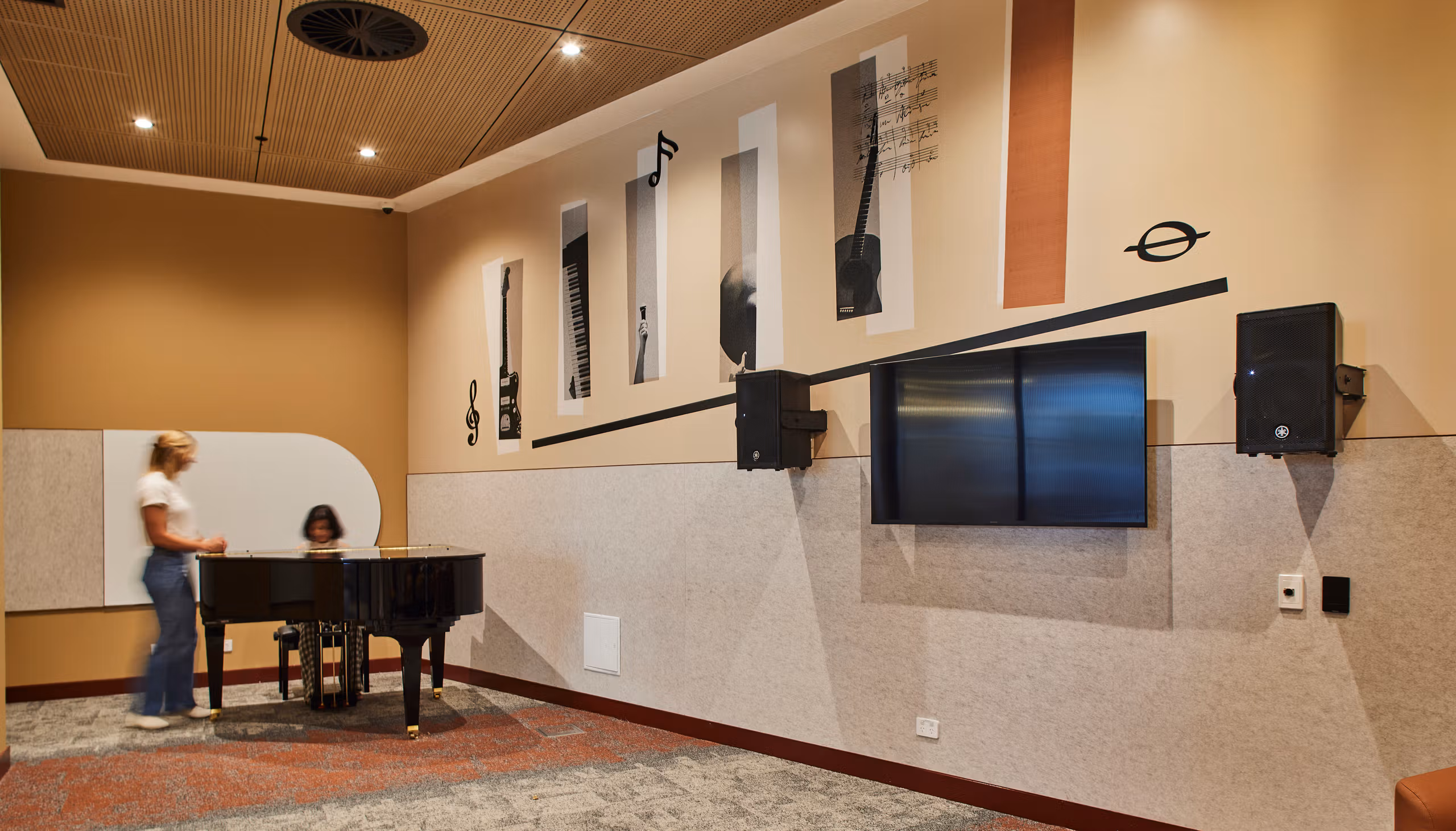

rWood Micro micro-perforated acoustic wood panels on a wall
Stock veneers
Select a veneer
10 / 19 mmpanel thickness, made to measure
0.90αw, absorption class A
B-s1,d0reaction to fire, FR MDF core
Micro Mstandard density, Ø 1.5 mm · 8.4 % open; three more on request
THE INVISIBLE SOLUTION

Designed for eyes and ears

rWood Micro combines an A-grade real-wood veneer with micro-perforations from Ø 0.5 mm. From a normal viewing distance the holes disappear into the wood: what you see is a continuous wood surface, what you hear is a quieter room.

Sound enters through the micro-perforations and is absorbed in the sound chambers of the fire-retardant MDF core and in the acoustic fleece behind it. How much the panel absorbs depends on the perforation density and on what sits behind it.

  • Perforations that disappear from a normal viewing distance
  • FR MDF core with sound chambers, acoustic fleece in black or white
  • Made to measure up to 3 050 × 1 220 mm, in 10 and 19 mm
  • Concealed clips, tool-free, for walls and ceilings
Build-up
  1. 01
    Micro-perforated veneerA-grade, holes from Ø 0.5 mm
  2. 02
    FR MDF coreWith sound chambers
  3. 03
    Acoustic fleeceBlack or white

Behind the panel: cavity, optional mineral wool.

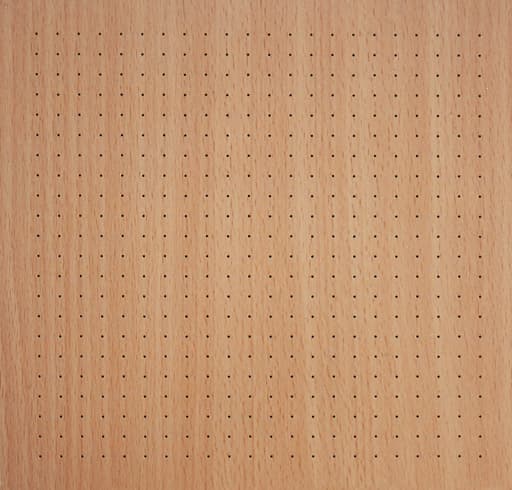

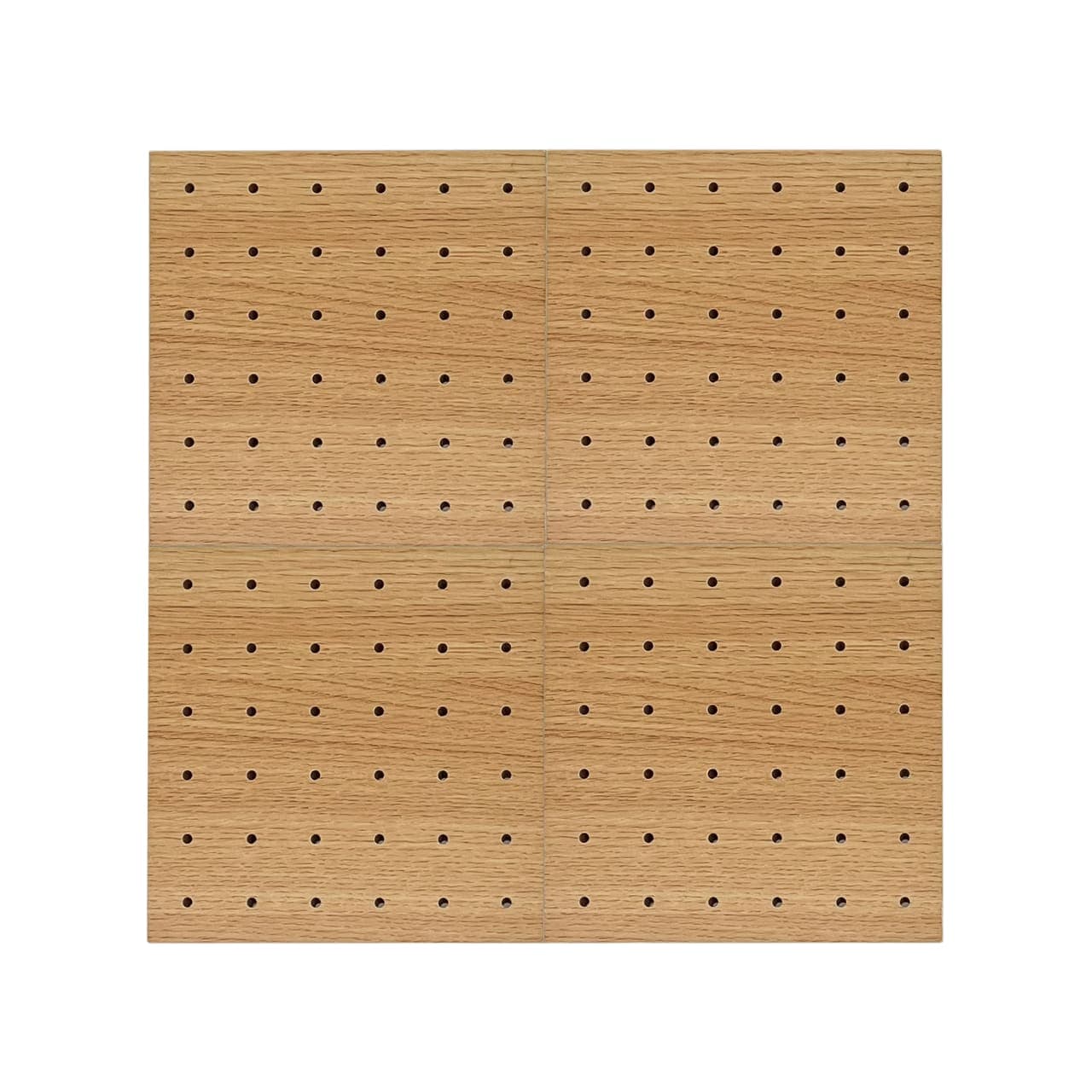

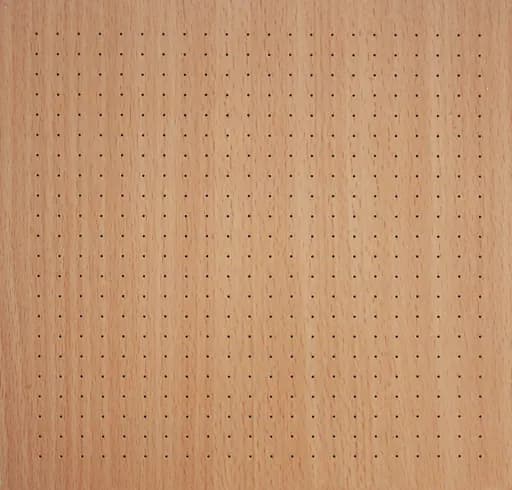

Close-up of a micro-perforated rWood Micro panel
PERFORATION

Four perforation densities

Hole size and open area per density. The larger the open area, the higher the absorption; the smaller the hole, the less visible the pattern.

Nano

Ø 0.5 mm · 2.5 % open

Virtually invisible perforations

Micro S

Ø 1.0 mm · 5.2 % open

Subtle micro-perforations

Standard density

Micro M

Ø 1.5 mm · 8.4 % open

Balanced perforation pattern

Micro L

Ø 2.0 mm · 10.6 % open

Maximum absorption pattern

Drawings about 2:1, hole size and open area as stated per density.

Micro M is the standard density. Nano, Micro S and Micro L and other perforation densities and patterns are made on request from your drawing.

Veneers

Eight stock veneers, any veneer to order

All rWood veneers are FSC®-certified and come from responsibly managed forests. Wood is a natural material: grain and colour vary from panel to panel, and on-screen swatches are indicative only.

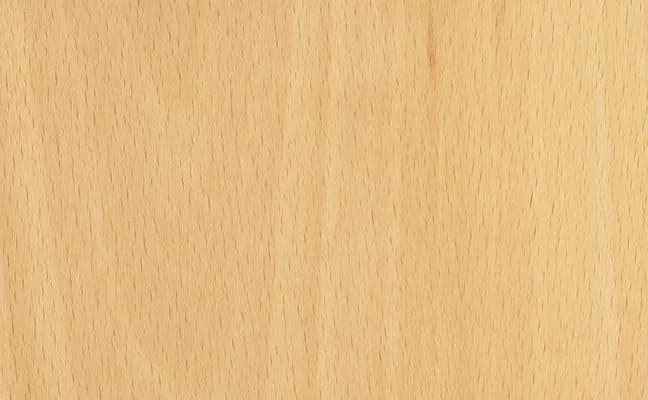

Beech White Ash veneer
Beech White AshEuropeStraight to interlocked

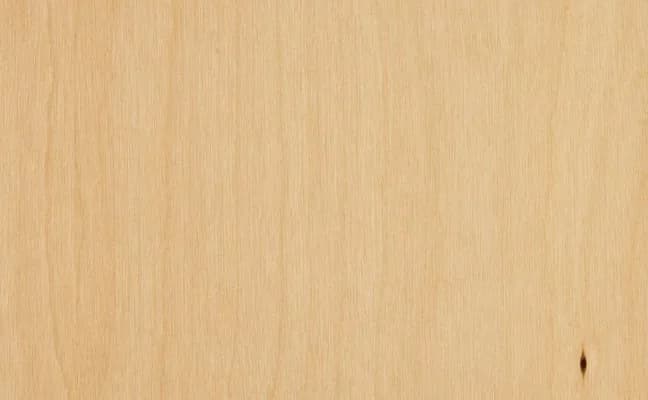

Birch Rotary veneer
Birch RotaryScandinaviaSubtle fine grain

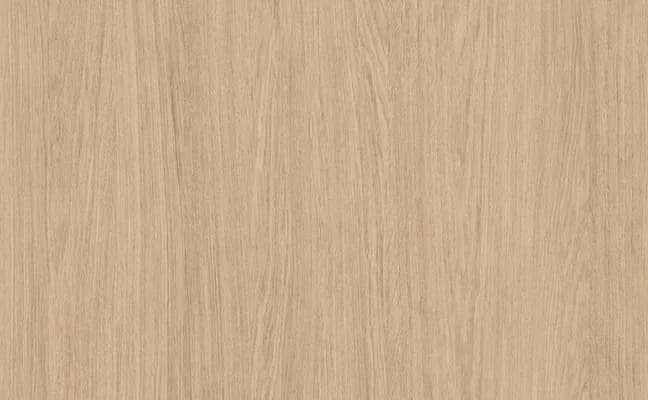

Silk Oak veneer
Silk OakEuropeFine straight grain

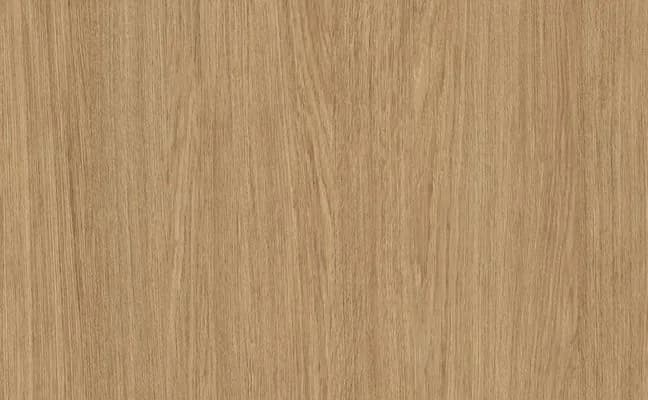

Straw Oak veneer
Straw OakEuropeCathedral grain

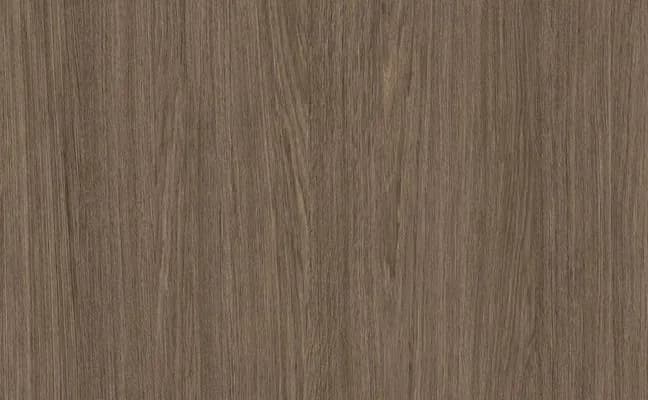

Umber Oak veneer
Umber OakEuropePronounced grain

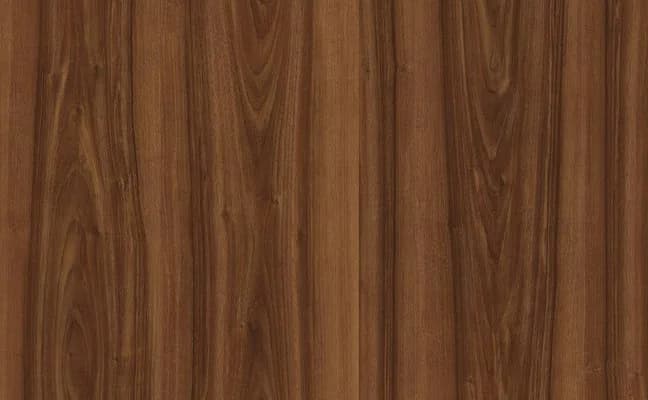

American Walnut veneer
American WalnutNorth AmericaStraight to wavy

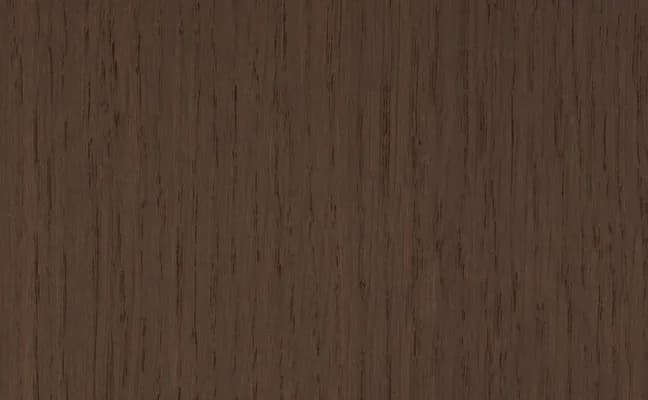

Smoked Oak veneer
Smoked OakEuropeDeep cathedral grain

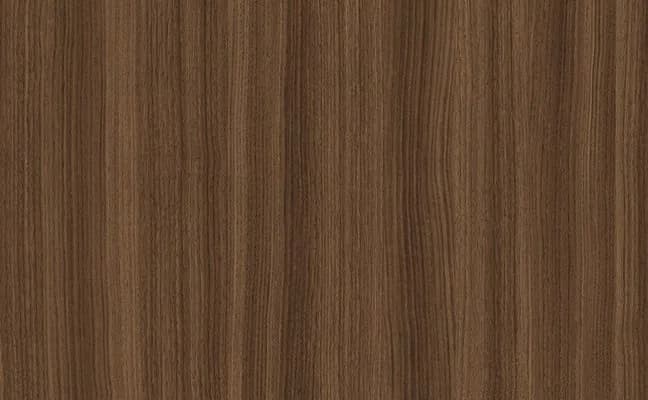

Tobacco Walnut veneer
Tobacco WalnutNorth AmericaRich flowing grain

Made to order

Beyond the eight stock veneers, we make any veneer species, stain colour and finish.

Finish

UV-cured lacquer from super matt to high gloss, natural or pigmented.

A natural material

Real wood varies in colour and grain. Ask for samples before you specify.

ACOUSTICS

Sound absorption

Sound enters through the micro-perforations and is absorbed in the sound chambers of the core and in the fleece behind it. How much the panel absorbs depends on the perforation density and on what sits behind it.

Sound absorption
αw0.90
Absorption classA
With 50 mm mineral woolαw up to 1.00
Test standardEN ISO 354 · EN ISO 11654

Behind the panel

A backing absorber raises the absorption: acoustic felt, an rPET panel or mineral wool in the cavity. With 50 mm mineral wool the panel reaches αw 1.00.

αw and absorption class to EN ISO 11654. Figures depend on the perforation density, the cavity depth and the absorber behind the panel.

INSTALLATION

Concealed clip system for walls and ceilings

Aluminium rails, optional mineral wool, then the panels clip on without tools. The fixings stay invisible and the wood surface runs on without interruption.

  1. 01

    Subframe

    Aluminium rails on the wall or ceiling structure.

  2. 02

    Insulation

    Optional mineral wool for higher absorption.

  3. 03

    Panels

    Concealed clips, tool-free mounting.

  4. 04

    Result

    Invisible fixings and a continuous wood surface.

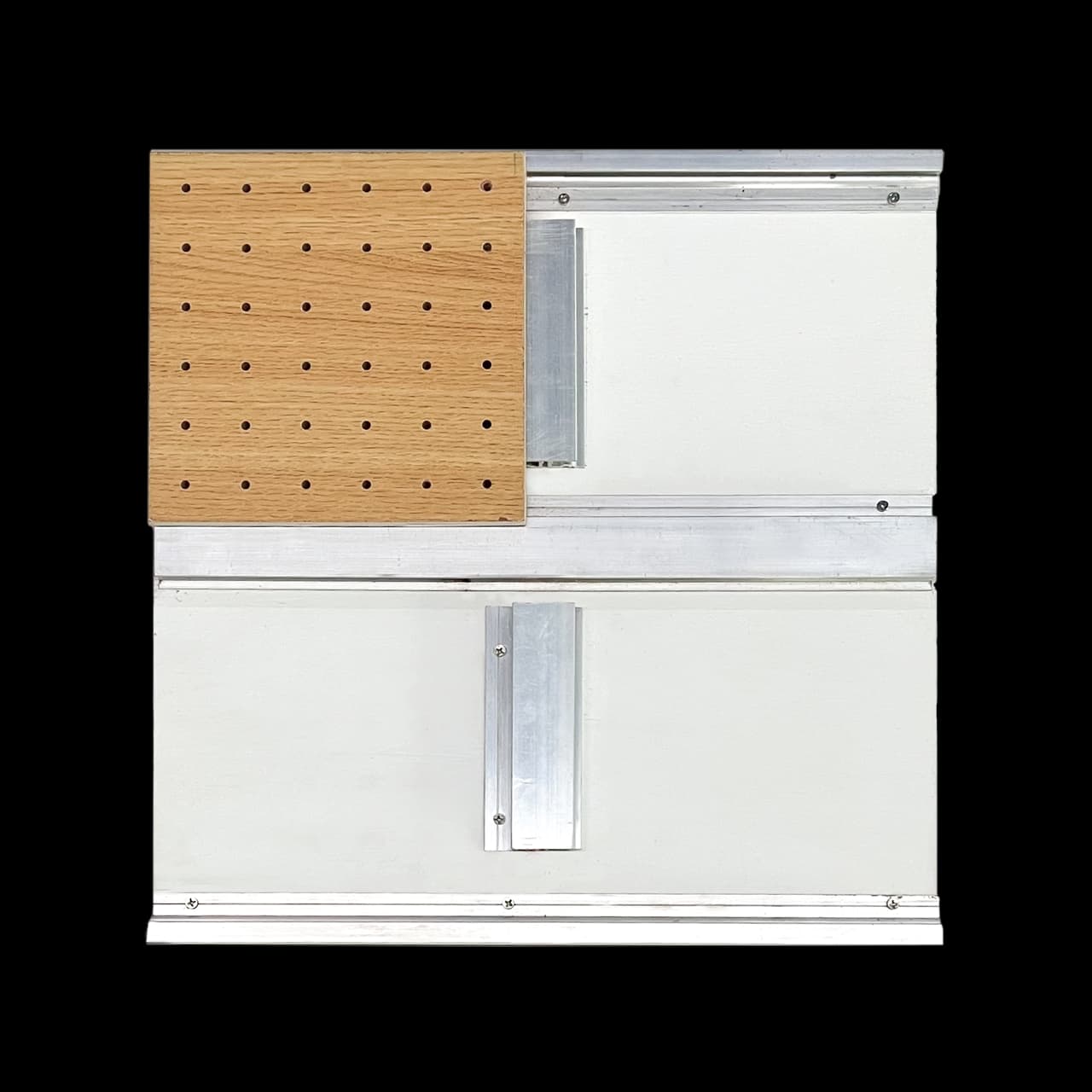

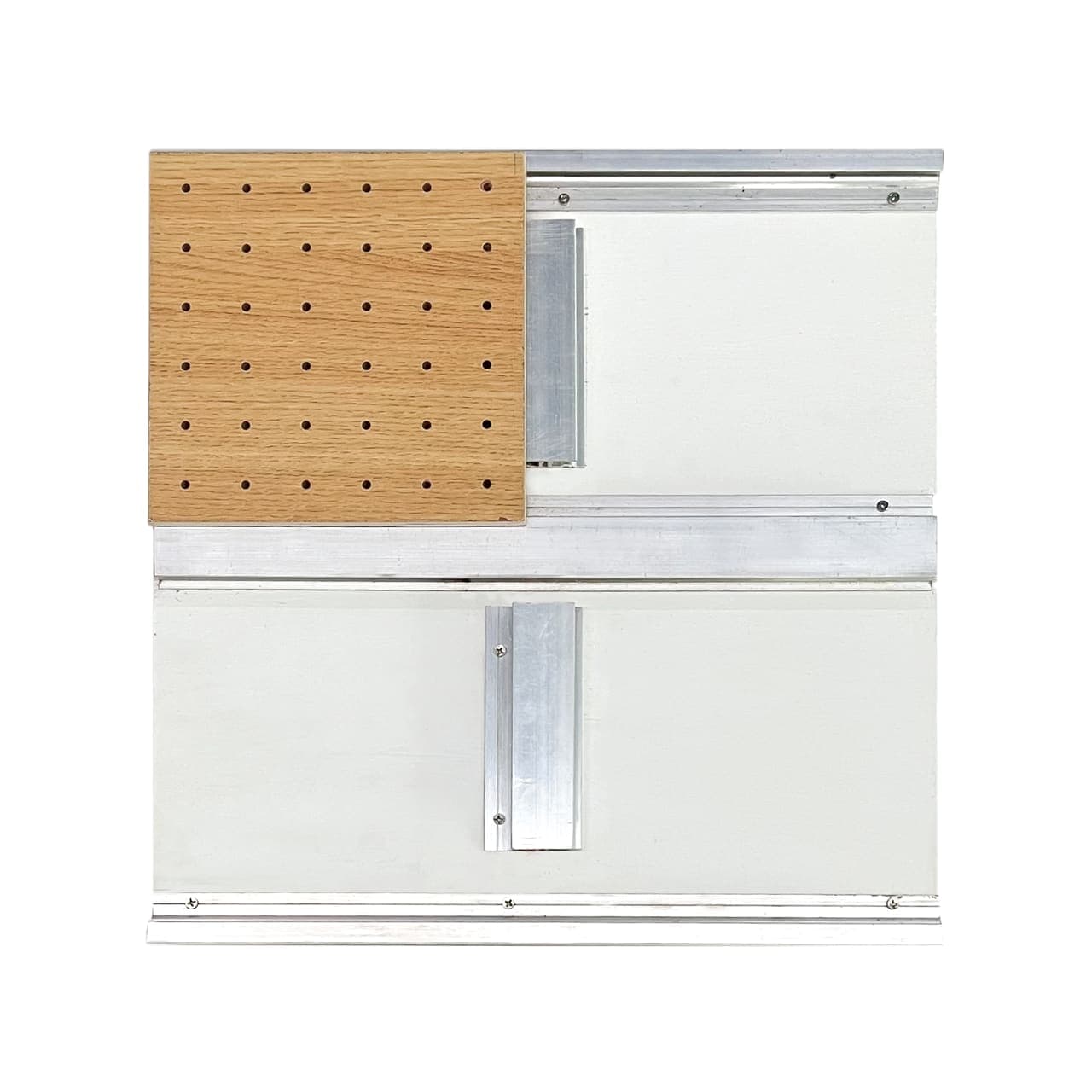

Aluminium rails and concealed clips of the rWood Micro mounting system

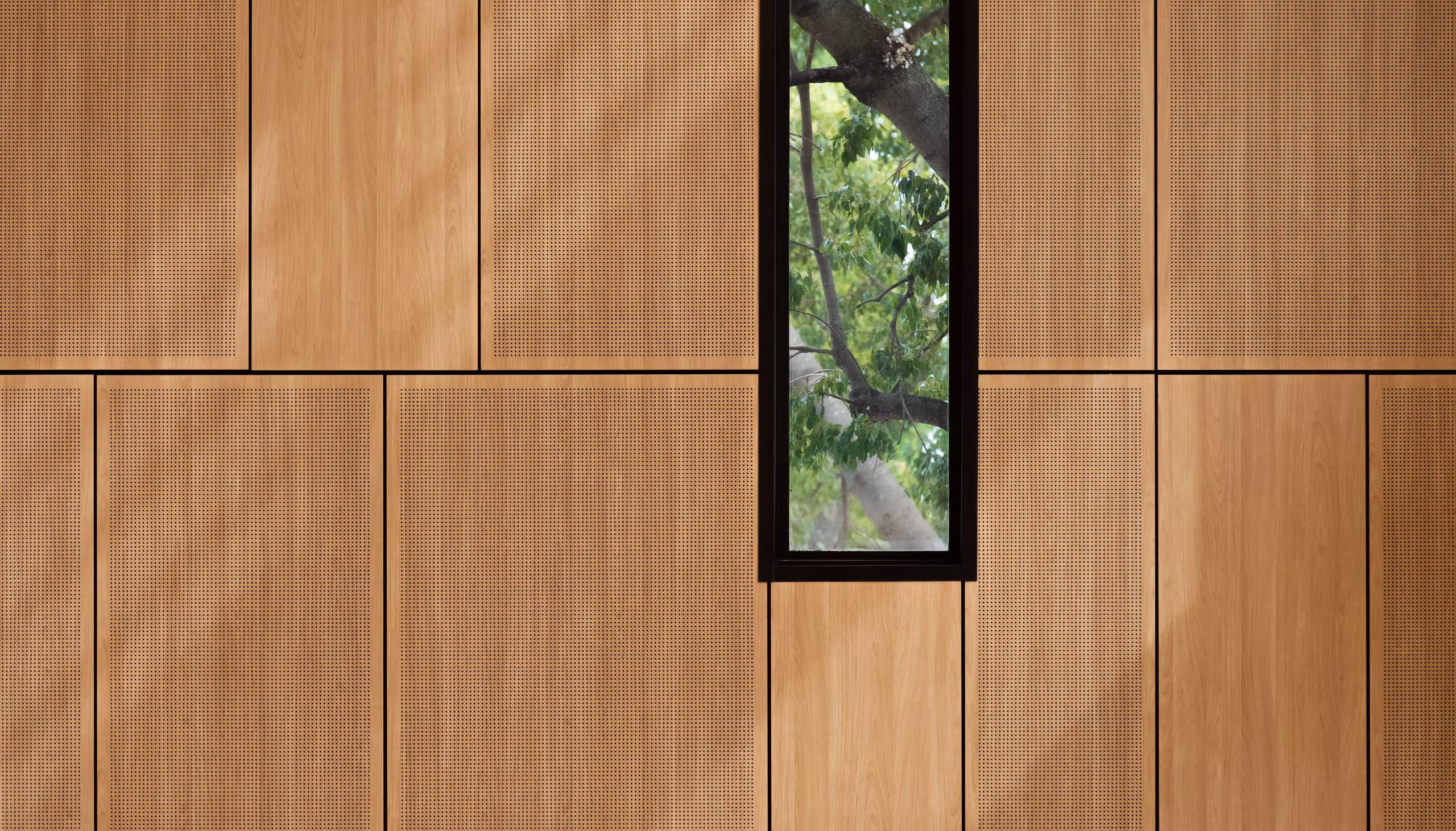

Made-to-measure rWood Micro panels fitted around a window
MADE TO MEASURE

From your drawings

rWood Micro is made to measure for walls and ceilings: from 100 × 100 mm up to 3 050 × 1 220 mm, in 10 and 19 mm, in any of the four perforation densities.

Custom dimensions

Every panel is produced to the sizes on your drawings, from 100 × 100 mm up to 3 050 × 1 220 mm.

Any veneer and finish

Eight stock veneers; any other veneer species, stain colour and finish to order.

Free veneer samples

Real wood varies in colour and grain. Ask for samples before you specify.

SUSTAINABILITY

Responsibly made

FSC®-certified veneer, formaldehyde class E1 and production in our own plant in Częstochowa. At end of life we take the panels back.

FSC®-certified veneer

Wood from responsibly managed forests, FSC® certificate C191539

Formaldehyde class E1

Low-emission FR MDF core, for interior, dry areas

Made in Poland

Manufactured in our own plant in Częstochowa (Poland)

Take-back at end of life

Re-Sound takes panels back free of charge at end of life in Belgium, the Netherlands, France, Germany and Luxembourg.

FSC-certified wood veneer
TECHNICAL DATA

Panel, fire and emissions

Panel

Sizes100–3 050 × 100–1 220 mm
Thickness10 / 19 mm
CoreFR MDF with sound chambers
Acoustic fleeceBlack or white
Made inCzęstochowa, Poland

Sound absorption

Absorption coefficient (αw)0.90
Absorption classClass A
With 50 mm mineral woolαw up to 1.00
Test standardEN ISO 354 · EN ISO 11654

Perforation densities

NanoØ 0.5 mm · 2.5 % open
Micro SØ 1.0 mm · 5.2 % open
Micro MØ 1.5 mm · 8.4 % open · standard density
Micro LØ 2.0 mm · 10.6 % open

Fire and emissions

Reaction to fireB-s1,d0
Fire standardEN 13501-1
Wood sourcingFSC®-certified, C191539
FormaldehydeE1
EnvironmentInterior, dry areas

Surface and options

Surface treatmentsNatural lacquer · pigmented · HPL laminate · foil · paint
LacquerUV-cured, super matt to high gloss, natural or pigmented
Veneer rangesNature (lively, characterful grain) · Gemini (even, uniform tone)
Core coloursBrown, green or black
EdgesOver-veneered solid wood for seamless joints

Installation

ApplicationWalls and ceilings
SubframeAluminium rails
MountingConcealed clips, tool-free
RESOURCES

Downloads

Leave your details and we e-mail you the document.

ORDERING

Lead times and samples

Lead time
Stock veneers3–4 weeks
Non-stock and custom6–8 weeks
Made to measureFrom your drawings
Supply
SamplesFree veneer samples
SizesUp to 3 050 × 1 220 mm
Minimum orderOn request
PricesOn request
DeliveryOn request

End of life

Re-Sound takes panels back free of charge at end of life in Belgium, the Netherlands, France, Germany and Luxembourg.

Samples and quotes

info@re-sound.be · +32 3 284 68 18
Showroom: Gentseweg 309 A3, 9120 Beveren-Waas, Belgium

Request samplesRequest a quote

Data reflects our current knowledge and may change without notice.

FAQ

Frequently asked questions

Where does the FSC-certified veneer come from?

All rWood veneers are FSC®-certified, chain-of-custody certificate C191539, and come from responsibly managed forests. The eight stock veneers are sourced in Europe, Scandinavia and North America; the certificate is available on request.

What is the fire rating?

With its fire-retardant MDF core, rWood Micro is classified B-s1,d0 to EN 13501-1. The panel is intended for interior, dry areas.

What is the standard lead time?

Stock veneers ship in 3–4 weeks; non-stock species and custom finishes take 6–8 weeks. Made-to-measure panels are produced from your drawings.

How are rWood panels installed?

With a concealed clip system: aluminium rails on the wall or ceiling structure, optional mineral wool in the cavity, then the panels clip on without tools. The fixings stay invisible and the wood surface runs on without interruption.

What happens to the panels at end of life?

Re-Sound takes panels back free of charge at end of life in Belgium, the Netherlands, France, Germany and Luxembourg.
